Inne C4P Paris

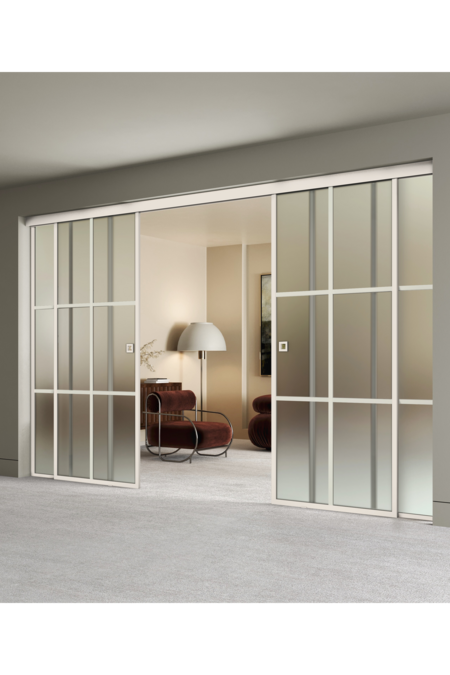

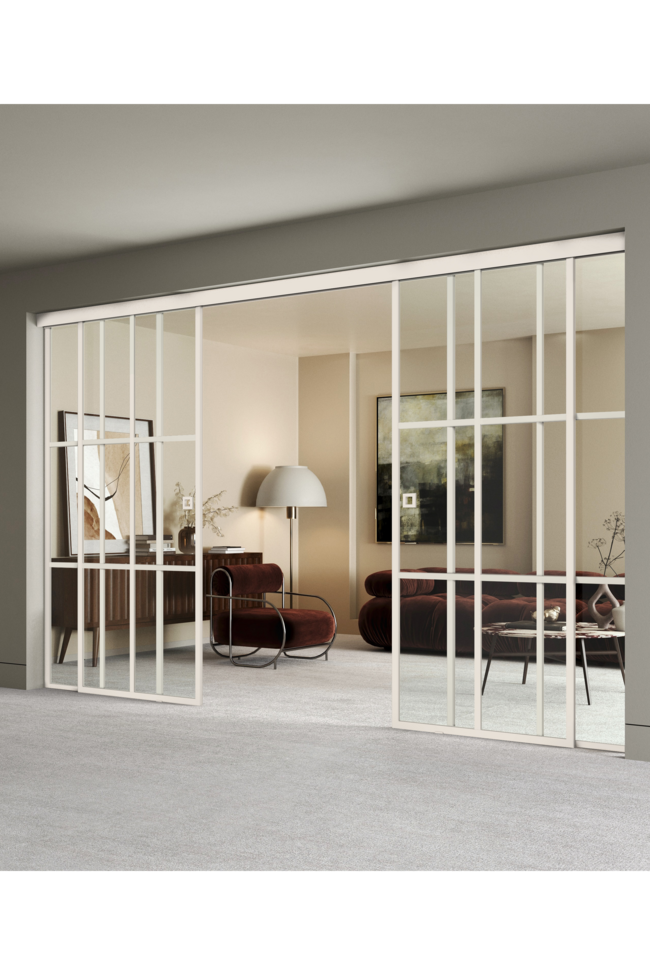

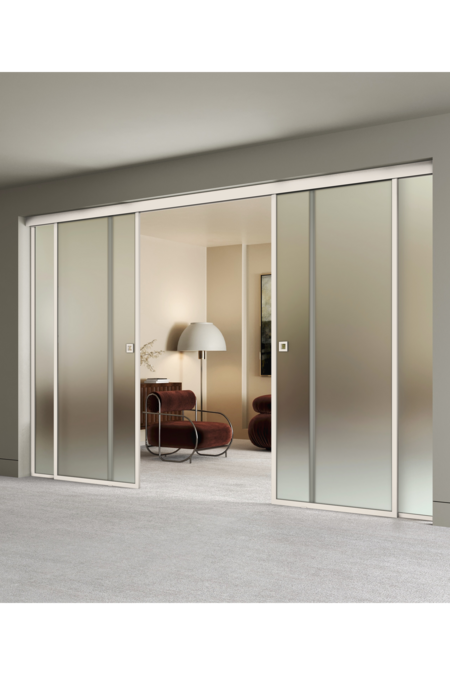

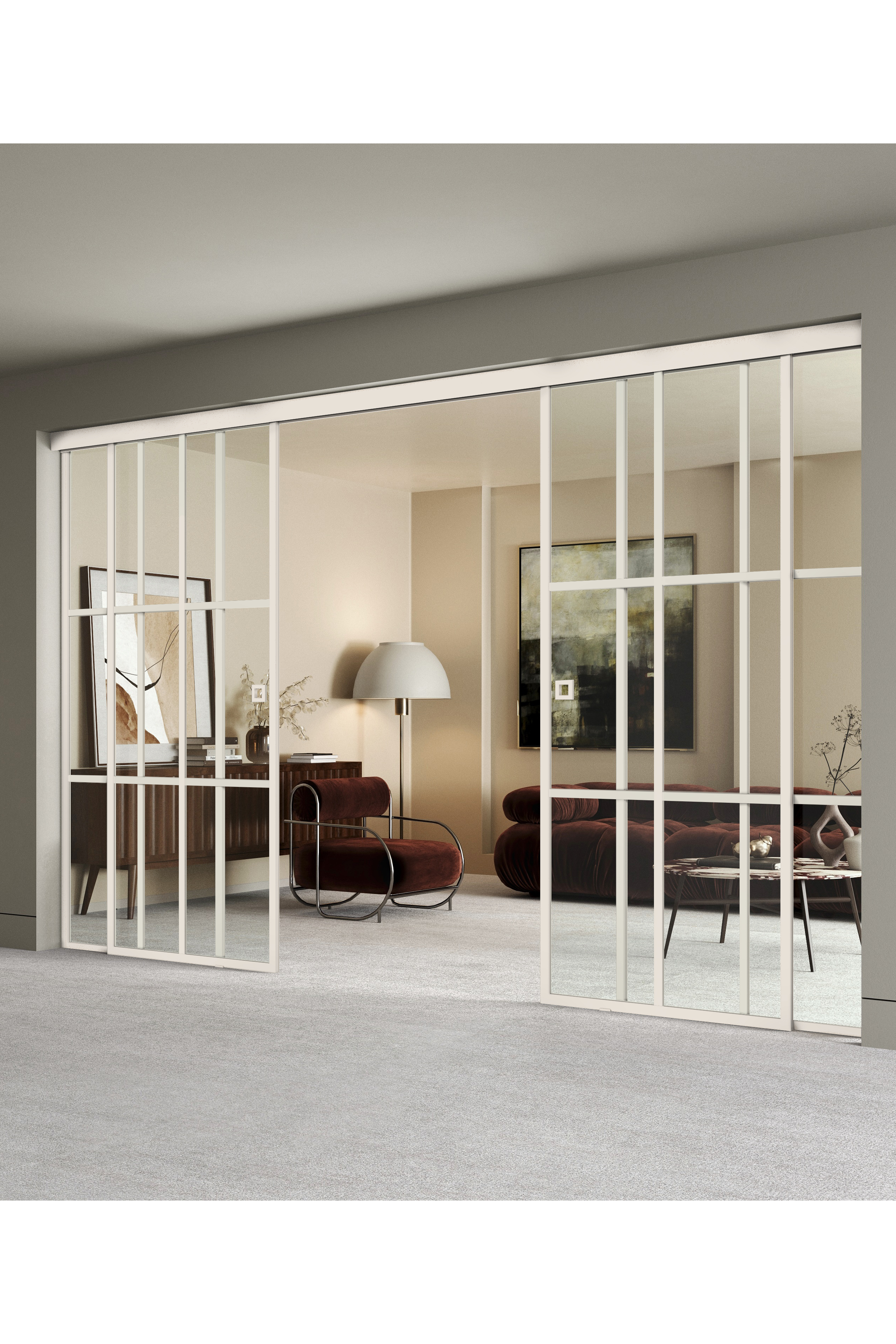

Double sliding doors with soft closing mechanism and 2 fixed walls
The sliding double door with two fixed parts unit consists of two sliding door glass panels, two fixed glass panels and ceiling mounted sliding mechanism.The sliding mechanism is affixed to the top of the door panel before being mounted on the sliding profile.The sliding mechanism is affixed to the top of the door panels before being mounted on the sliding profile.The sliding rail profile is covered from the front and sides with cover plates.
The sliding rail profile is fixed to the ceiling.The sliding mechanism is affixed to the top of the door panel before being mounted on the sliding profile.The fixed wall panel is mounted to the top profile and a floor fitting profile.The fixed wall panels are mounted to the top profile and floor fitting profiles on each side of the enclosure.A door guide is installed on the floor.The sliding rail profile is covered from the front and sides with cover plates.
20 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). Transparent, grey and brown are smooth surfaced and transparent panels. Reeded and satin panels are not fully transparent, details cannot be made out through the panel. The reeded glass is smooth on one side and textured on the other. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The unit is always manufactured according to custom dimensions. When selecting the size, enter the width of the opening and the height of the opening, entering the smallest measurements in the actual gap. When the width consists of more than one panel, all entered width measurements should add up to the total measurement of the actual gap at its narrowest.
Product size
.:
Select handle
Product
Product code
Price
1
Inne C4P Paris
Product code
C4P-61-0000
Price
0.00 €
2
Inne sliding Fixed panel A
White painted/Transparent=1050 x 1900
Product code
764 61 0000
Price
350.00 €
3
Inne ceiling Door A
White painted/Transparent=740 x 1900
Product code
765 61 0000
Price
820.00 €
4
Inne ceiling Door B
White painted/Transparent=740 x 1900
Product code
765 61 0000
Price
820.00 €
5
Inne sliding Fixed panel B
White painted/Transparent=1050 x 1900
Product code
764 61 0000
Price
350.00 €
6
Paris-frame
Product code
703 6L 0000
Price
120.00 €
7
Paris-frame
Product code
703 6L 0000
Price
120.00 €
8
Paris-frame
Product code
703 6L 0000
Price
120.00 €
9
Paris-frame
Product code
703 6L 0000
Price
120.00 €
10
TOTAL
Product code
Price
2820.00 €
.:
