Bläk 882 Tokyo

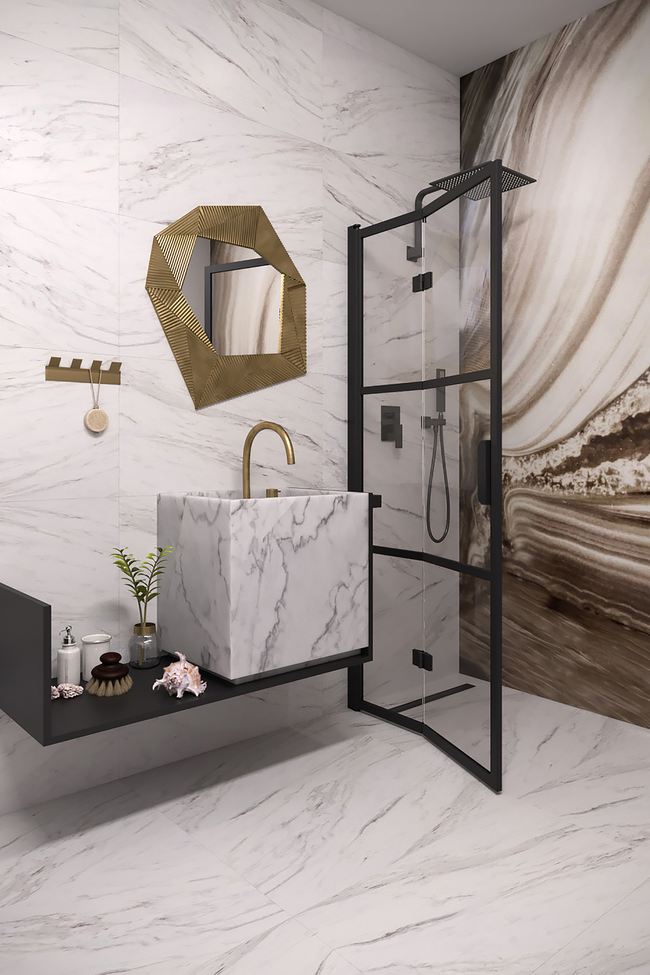

Folding shower screen

Folding shower screen protects the space and the fixture next to the shower from splashing water. When the shower is not in use, the shower screen can be folded into a small space against the wall of the building, inside the shower area.

The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions. In addition, the outermost panel rotates 180 degrees in terms of the inner panel, so that the panels fold against each other into the shower area.

The wall mounting profile is screwed in to the building wall. The door panel is attached to the wall mounting profile with self-drilling screws. A step profile and a bottom seal can be installed under the door panel to improve water retention.

Installation
Icon

12 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black/white.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Folding shower screen (A)

X

The total width of the selected product is:
- At its narrowest: 680mm
- At its widest: 695mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


Product

Product code

Price

1

Bläk 882 Tokyo

Product code

882-61-1

Price

0.00 €

2

Blak 713 Folding shower screen
White painted/Transparent/A=680 x 1950

Product code

713 61 0070

Price

695.00 €

3

Side seal

Product code

720 RL 0001

Price

0.00 €

4

Tokyo -frame

Product code

702 RL 0001

Price

110.00 €

5

Grid placement Tokyo Grid placement

Product code

780 RL 0001

Price

0.00 €

6

Bläk -campaign -20%

Product code

DISCOUNT

Price

-139.00 €

7

TOTAL

Product code

Price

666.00 €

The total width of the selected product is:
- At its narrowest: 680mm
- At its widest: 695mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:

EAN:
