Bläk 790 Tokyo

Hinged shower door with magnet locking

The swinging shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.

The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.

The door panel is mounted to the building wall using wall mounting profile on the hinge side of the doorway and a magnet holding wall profile on the other side. Bottom seals and step profiles can be installed under the door panels to improve water retention. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black/white.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 22mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

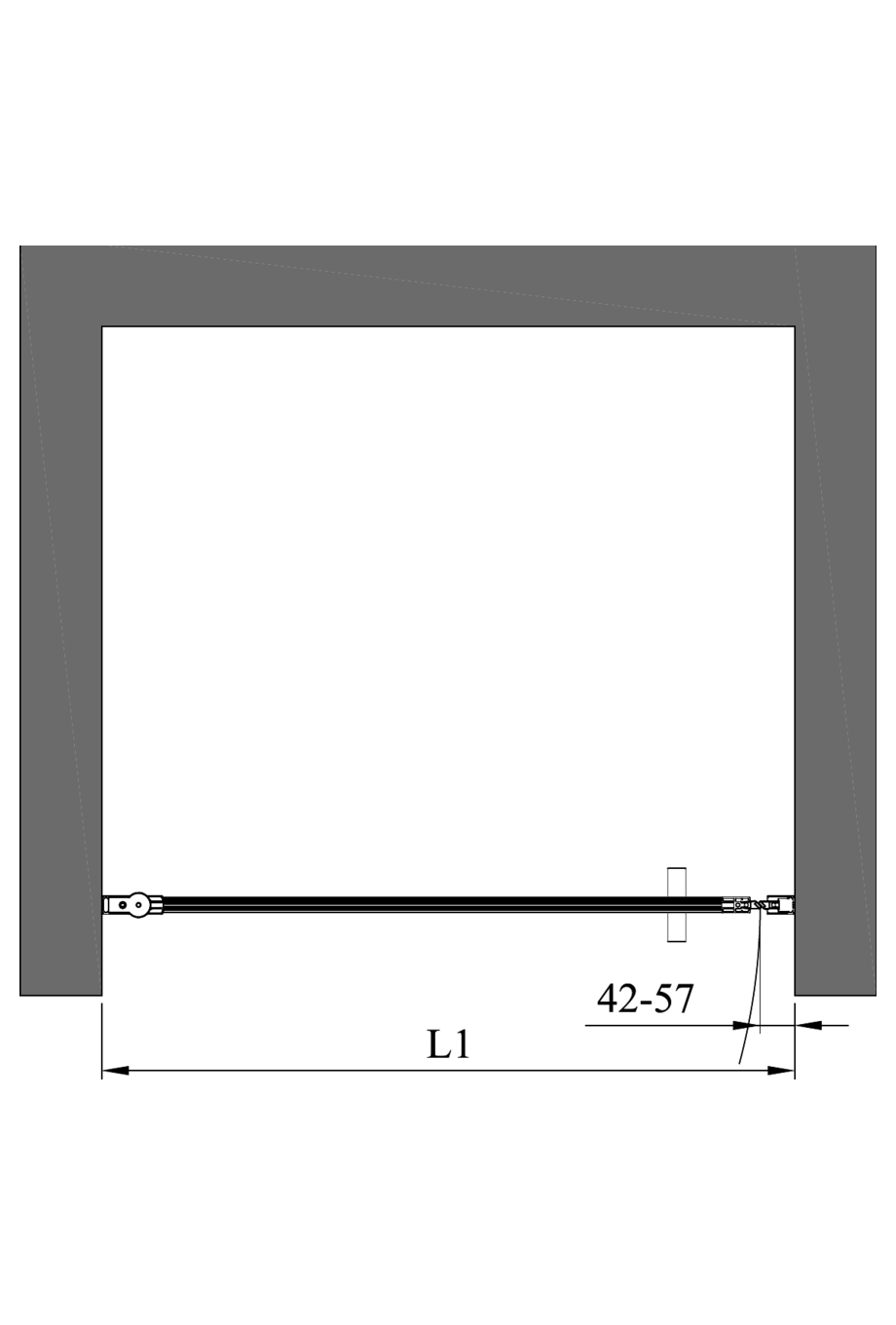

Hinged shower door (L1)

X

The total width of the selected product is:
- At its narrowest: 749mm
- At its widest: 771mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


Product

Product code

Price

1

Bläk 790 Tokyo

Product code

790-61-4

Price

0.00 €

2

Bläk 712 Hinged shower door
White painted/Transparent/L1=749 x 1950

Product code

712 61 0069

Price

530.00 €

3

Magnet locking

Product code

728 9L 0004

Price

65.00 €

4

Tokyo -frame

Product code

702 RL 0004

Price

110.00 €

5

Grid placement Tokyo Grid placement

Product code

780 RL 0004

Price

0.00 €

6

Bläk -campaign -20%

Product code

DISCOUNT

Price

-106.00 €

7

TOTAL

Product code

Price

599.00 €

The total width of the selected product is:
- At its narrowest: 749mm
- At its widest: 771mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:

EAN:
