Bläk 736 Tokyo

Hinged shower screen with a fixed part

The shower screen consisting of a fixed part and of a hinged part hinged to it the shower screen protects the space and the fixtures next to the shower from splashing water. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side. Due to the combination of the fixed and the hinged part the shower screen can be dimensioned also in a cramped space so that the hinged part does not hit other fixtures.

The hinged part of the shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the hinged part back to the open and closed positions.

The wall mounting profile is screwed in to the building wall. The fixed shower panel with a tuning leg set up on the bottom is attached to the wall mounting profile with self-drilling screws. The door panel is attached to the fixed panel. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. Profiles are painted black (RAL 9005) through powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mounted profiles have 7mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 40mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

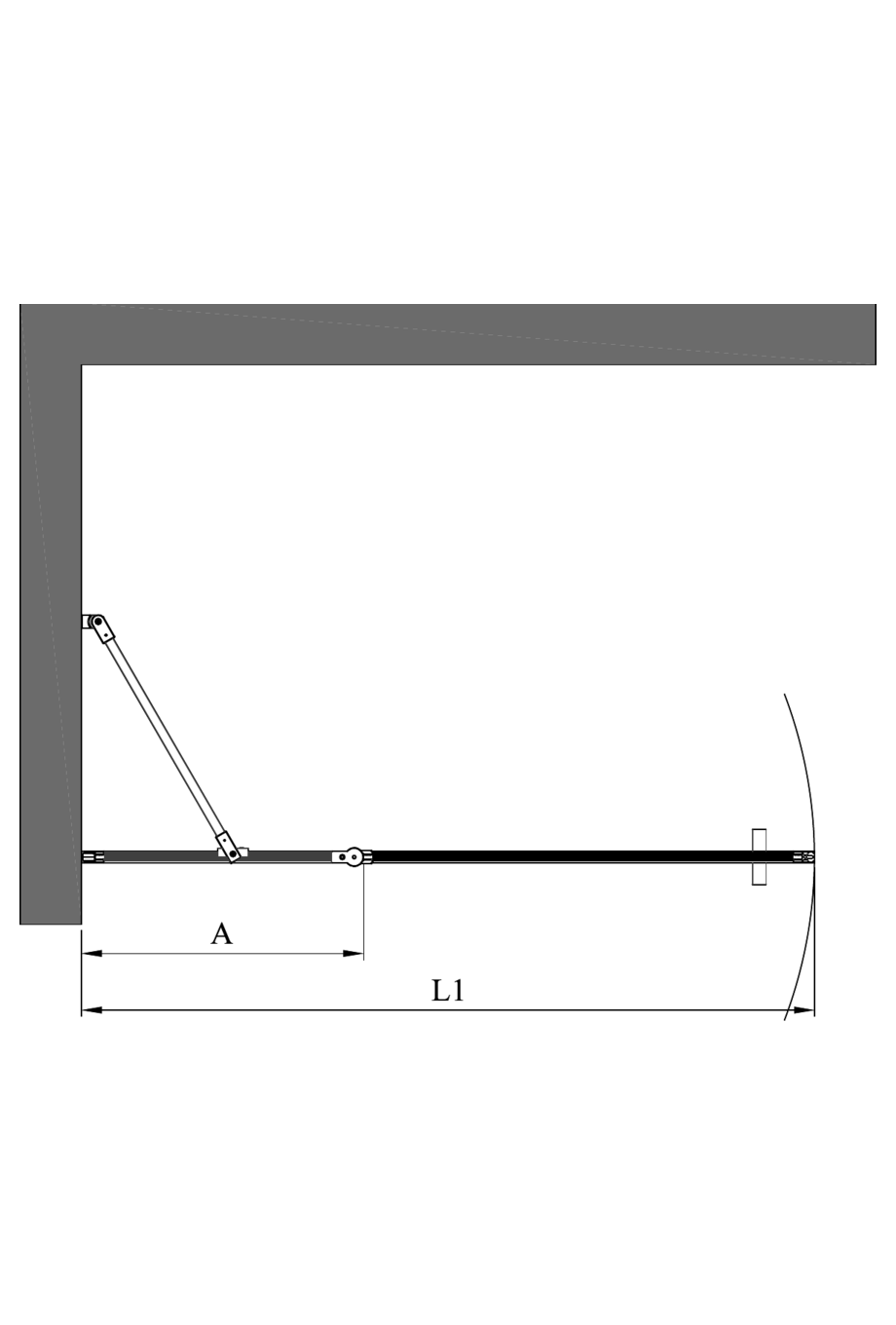

Product size

Shower screen fixed part (A)

X

Shower screen hinged part (B)

X

The total width of the selected product is:
- At its narrowest: 595mm
- At its widest: 602mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


Product

Product code

Price

1

Bläk 736 Tokyo

Product code

736-91-11

Price

0.00 €

2

Bläk 714 Shower screen fixed part
Black painted/Transparent/A=260 x 1950

Product code

714 91 0026

Price

350.00 €

3

Blak 714 Shower screen hinged part
Black painted/Transparent/B=335 x 1950

Product code

714 91 1033

Price

350.00 €

4

Bläk 708 Tokyo -frame 714/734 Tokyo -frame

Product code

708 RL 0001

Price

55.00 €

5

Grid placement Tokyo Grid placement

Product code

780 RL 0001

Price

0.00 €

6

Side seal

Product code

720 RL 0001

Price

0.00 €

7

Bläk 708 Tokyo -frame 714/734 Tokyo -frame

Product code

708 RL 0001

Price

55.00 €

8

Grid placement Tokyo Grid placement

Product code

780 RL 0001

Price

0.00 €

9

Bläk -campaign -20%

Product code

DISCOUNT

Price

-140.00 €

10

TOTAL

Product code

Price

670.00 €

The total width of the selected product is:
- At its narrowest: 595mm
- At its widest: 602mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:

EAN: 6418379427887
