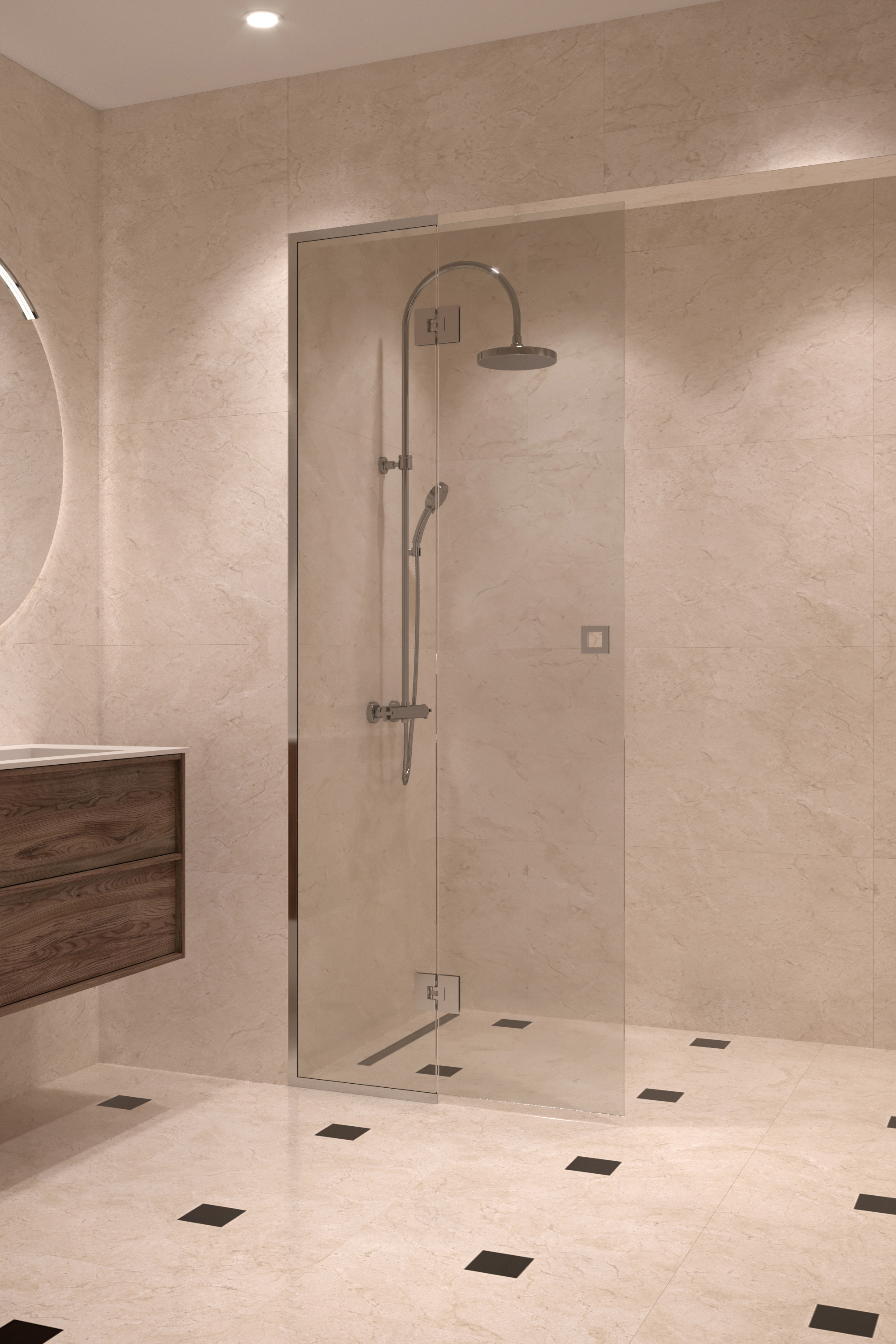

Framed shower screen with a fixed part
A framed shower wall unit with hinged door consists of a glass panel, mounting frame profiles and a door panel. The fixed panel is attached to the wall, floor and ceiling using stainless steel profiles. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side.
The framed wall panel is secured by screwing the frame profiles to the wall and ceiling. The glass is glued to the frame profiles and cushioned with seals. The hinged door panel is attached to the fixed panel.
23 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of stainless steel. The hinges of the door are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
Shower wall is manufactured according to custom measures.
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm.
Vetro 517 Alcove fixed screen
Chrome plated/Transparent/A=800 x 2000
517 21 0000
Vetro 517 Alcove hinged door
Chrome plated/Transparent/B=500 x 2000
517 21 1000
Vetro Round Handle Vetro round handle
Y45 2L MMMM
