Forma 301

Fixed shower screen

Fixed shower screen protects the space and the fixture next to the shower from splashing water. Fixed shower screen is sturdy and can be efficiently used for protection from water.

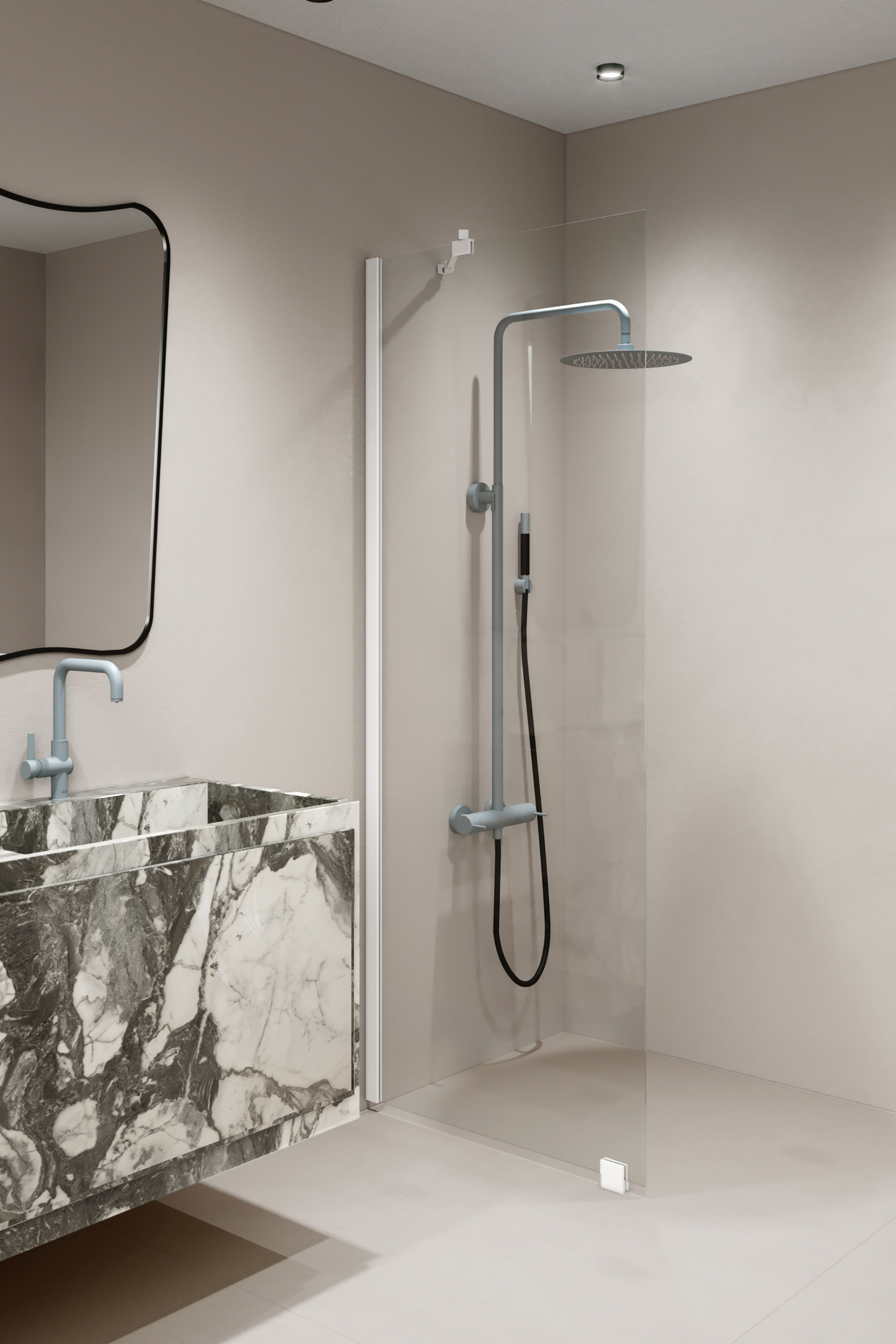

Shower screen is attached by its sides to the building wall with a wall mountedprofile. The panel is supported from the upper edge by the braces installed into the corner. The panel is supported from the bottom edge by the fitting glued to the floor, which means that there will be a 25mm gap between the panel and the floor. Between the panel and the floor a seal (standard part) may be installed, in order to prevent water from flowing under the panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

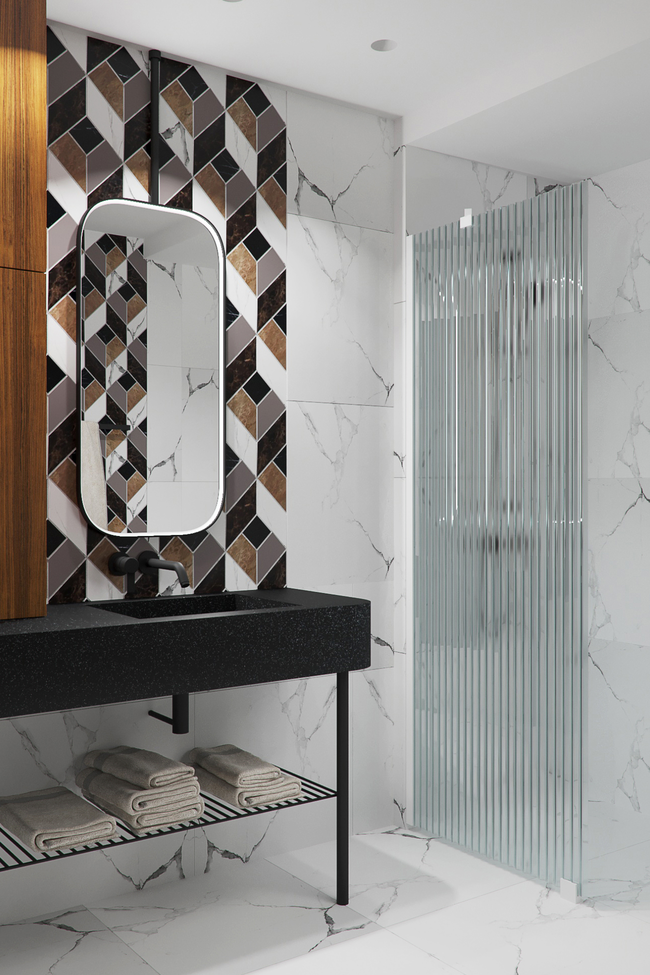

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels. Reeded panels consists of parallel bands which diffuses the light such that image behind is not completely clear. Satin panels are not fully transparent, details cannot be made out through the panel. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. Reeded glass is only available in standard sizes.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Fixed screen (A)

X

The total width of the selected product is:
- At its narrowest: 380mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


Product

Product code

Price

1

Forma 301

Product code

301-61-1

Price

0.00 €

2

Forma 301 Fixed screen
White painted/Transparent/A=380 x 2025

Product code

301 61 0038

Price

480.00 €

3

TOTAL

Product code

Price

480.00 €

The total width of the selected product is:
- At its narrowest: 380mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:

EAN: 6418379424398
