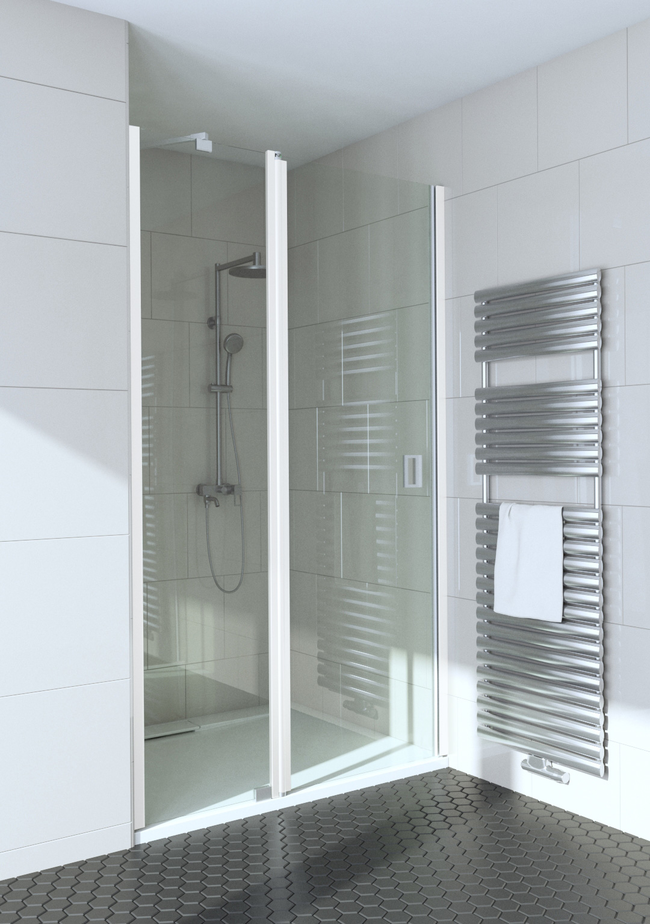

Fenic 337 (314+319)

Hinged shower door with a fixed part and magnet locking

The shower screen consisting of a fixed part and of a hinged part hinged to it protects the space and the fixtures located next to the shower from splashing water. The fixed part efficiently restricts water, and when the shower is not in use the hinged part can be turned to the side. Due to the combination of the fixed and the hinged part the shower door can be dimensioned even in cramped spaces so that the hinged part does not hit other fixtures.

The hinged part of the shower door opens to the outside 90 degrees. The door is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. The door has a magnet seal that locks tightly to its counterpart when the shower is in use.

The shower door and the wall magnet are mounted to the building wall by means of wall mountedprofiles. The fixed wall is supported from the top edge with the brace installed in the corner and from the bottom corner with the fixture glued to the floor. There will be a 25mm gap between the panel of the fixed part and the floor. A seal (standard part) may be installed between the panel and the floor, to prevent water from being able to flow under the panel. A floor seal can be installed along the bottom edge of the hinged part, which restricts the flow of water. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower door can be selected from the standard dimensions or it can be manufactured custom dimensions. The wall mountedprofiles have the total of 35mm adjustment tolerance The adjustment range can be used for levelling any tilt of the building’s walls as well as for accommodating the shower door into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

Product size

Shower door fixed part (A)

X

Shower door hinged part (B)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 788mm
- At its widest: 823mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Fenic 337 (314+319)

Product code

337-61-54

Price

0.00 €

2

Fenic 314/315 Shower door fixed part
White painted/Transparent/A=417 x 2000

Product code

314 61 0042

Price

257.50 €

3

Fenic 314 Shower door hinged part
White painted/Transparent/B=371 x 2000

Product code

314 61 1031

Price

257.50 €

4

Wall magnet

Product code

319 6L 0004

Price

50.00 €

5

TOTAL

Product code

Price

565.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 788mm
- At its widest: 823mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379423513
