Fenic 335 (312+319)

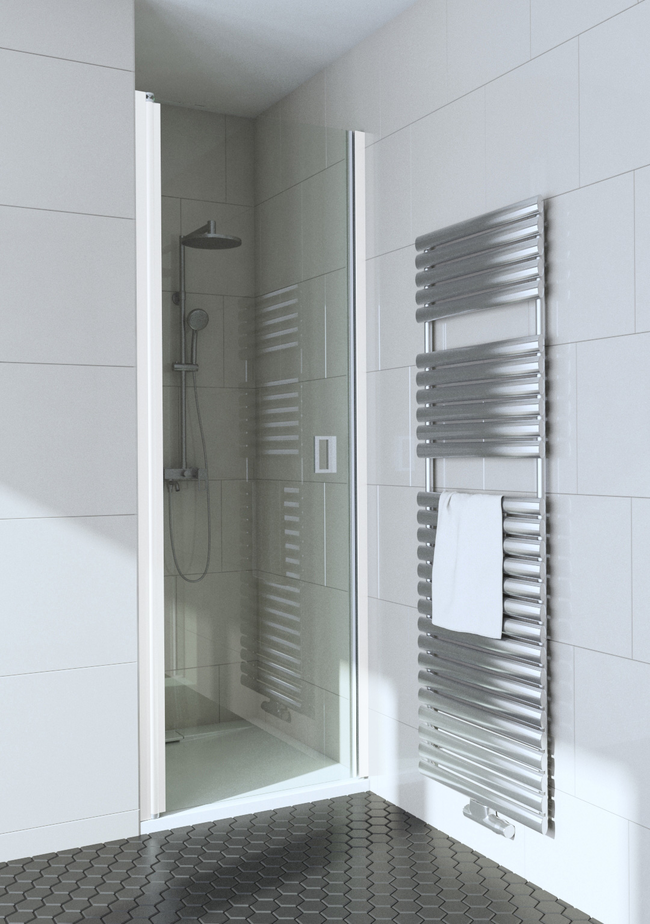

Curved shower door with magnet locking

Hinged shower screen protects the space and the fixtures next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.

The shower door opens to the outside 90 degrees. The door is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. The door has a magnet seal that locks tightly to its counterpart when the shower is in use.

The shower door and the wall magnet are mounted to the building wall by means of wall mountedprofiles. The installation height is freely selectable. By installing the product close to the floor and mounting a floor seal along the bottom edge, the flow of water can be restricted. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower door can be selected from the standard dimensions or it can be manufactured custom dimensions. The wall mountedprofiles have the total of 30mm adjustment tolerance The adjustment range can be used for levelling any tilt of the building’s walls as well as for accommodating the shower door into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

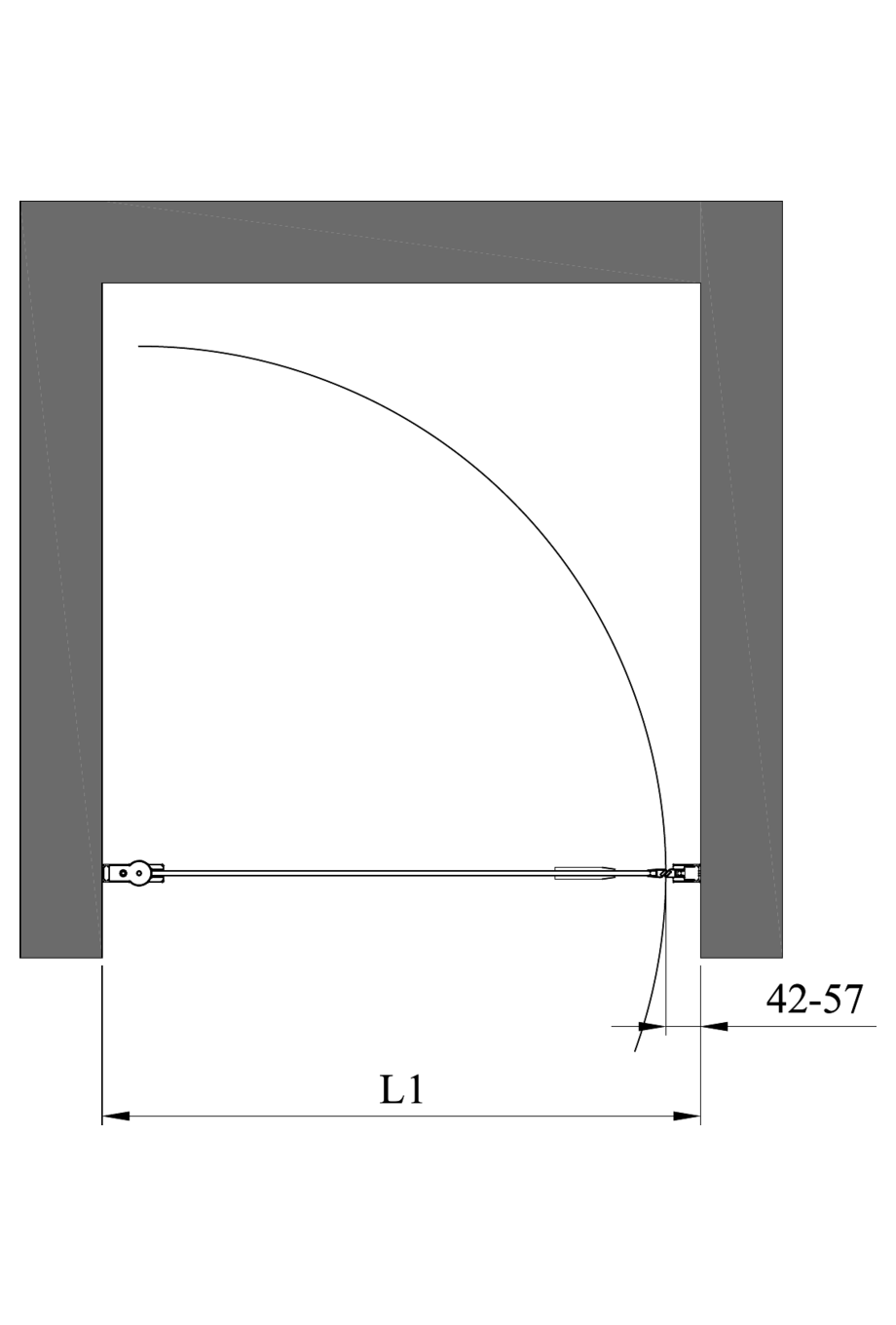

Product size

Shower door (L1)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 431mm
- At its widest: 461mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Fenic 335 (312+319)

Product code

335-61-4

Price

0.00 €

2

Fenic 312 Shower door
White painted/Transparent/L1=431 x 2000

Product code

312 61 0038

Price

360.00 €

3

Wall magnet

Product code

319 6L 0004

Price

50.00 €

4

TOTAL

Product code

Price

410.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 431mm
- At its widest: 461mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379423438
