Infinia 213

Folding shower screen

Folding shower screen protects the space and the fixture next to the shower from splashing water. When the shower is not in use, the shower screen can be folded into a small space against the wall of the building, inside the shower area.

The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions. In addition, the outermost panel rotates 180 degrees in terms of the inner panel, so that the panels fold against each other into the shower area.

The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and by mounting a floor seal to the bottom edge of the panel j the flow of water can be restricted. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels Chinchilla and satin panel are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building’s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

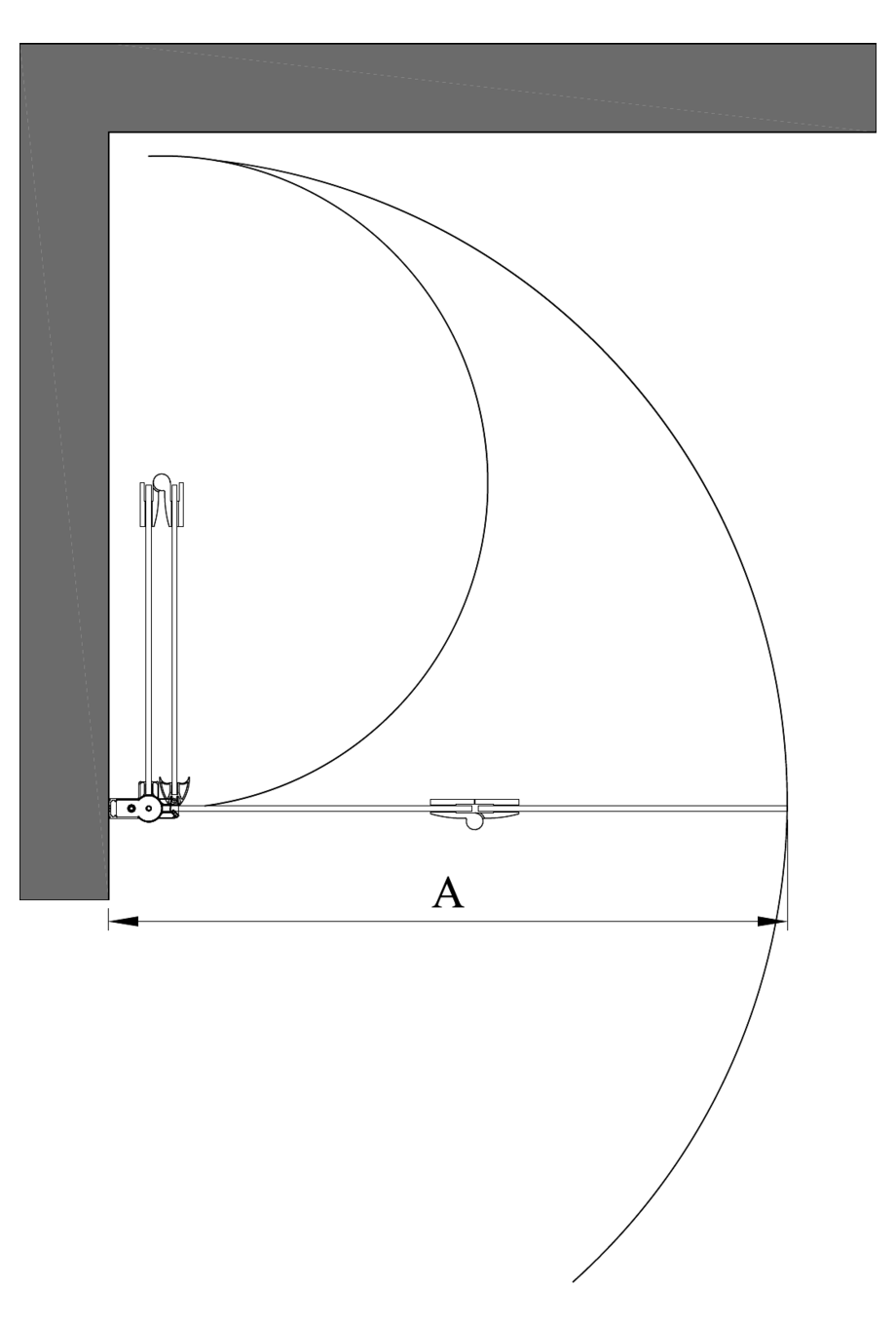

Folding shower screen (A)

X

The total width of the selected product is:
- At its narrowest: 561mm
- At its widest: 576mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:


The product can be equipped with a profile handle along the entire height of the panel, in order to facilitate use. The profile handle increases the width of the product by 10mm. Profile handle Is installed at the factory during the manufacturing of the product and cannot be removed later on.

Product

Product code

Price

1

Infinia 213

Product code

213-61-1

Price

0.00 €

2

Infinia 213 Folding shower screen
White painted/Transparent/A=561 x 1900

Product code

213 61 0056

Price

495.00 €

3

TOTAL

Product code

Price

495.00 €

The total width of the selected product is:
- At its narrowest: 561mm
- At its widest: 576mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls.:

EAN: 6418379417598
