Bläk 890 New York

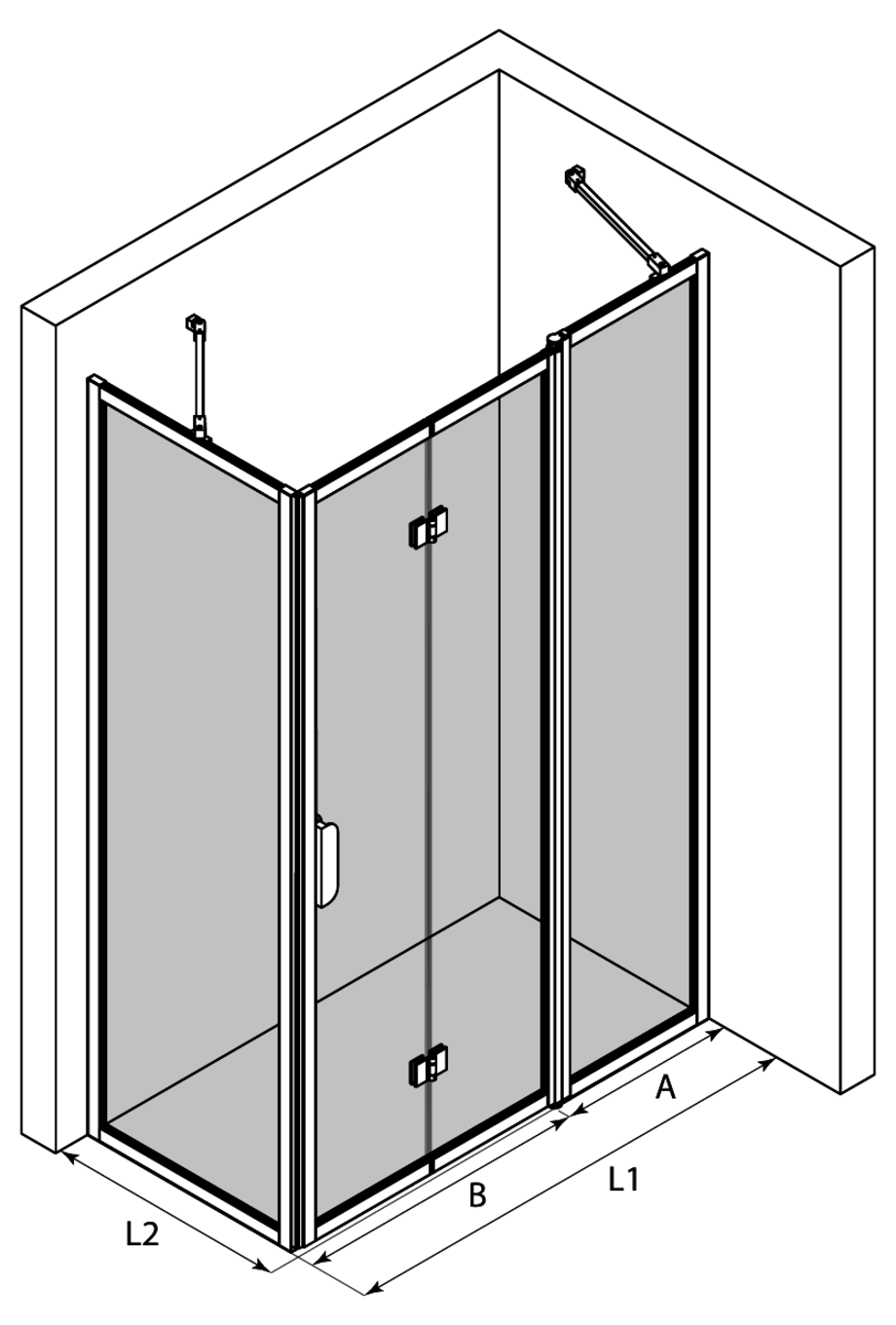

Shower enclosure with a fixed wall and a folding door with a fixed part

The shower enclosure consists of two fixed walls, into one of which a hinged door has been installed. The product is well-suited for a shower corner on the outside of which are fixtures and on the other side of which the space is cramped both inside and outside of the shower area. Folding door does not require space for opening from outside of the shower area, but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the folding door is hinged and can be dimensioned according to the fixture (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. The other fixed wall can be dimensioned so that the fixed wall protects the fixtures outside of the shower area.

The door rotates 90 degrees in both directions and is equipped with an adjustable centring. The function of the centring is to return the door to the open and closed positions. In addition, the outer panel rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the door tightly closed while showering.

The wall and the door with fixed part panels are mounted to building wall using wall mounting profiles on each side of the enclosure space. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Installation
Icon

-1 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black/white.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 7mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Shower enclosure fixed screen (L1)

X

Shower enclosure fixed screen (A)

X

Shower enclosure folding door (B)

X

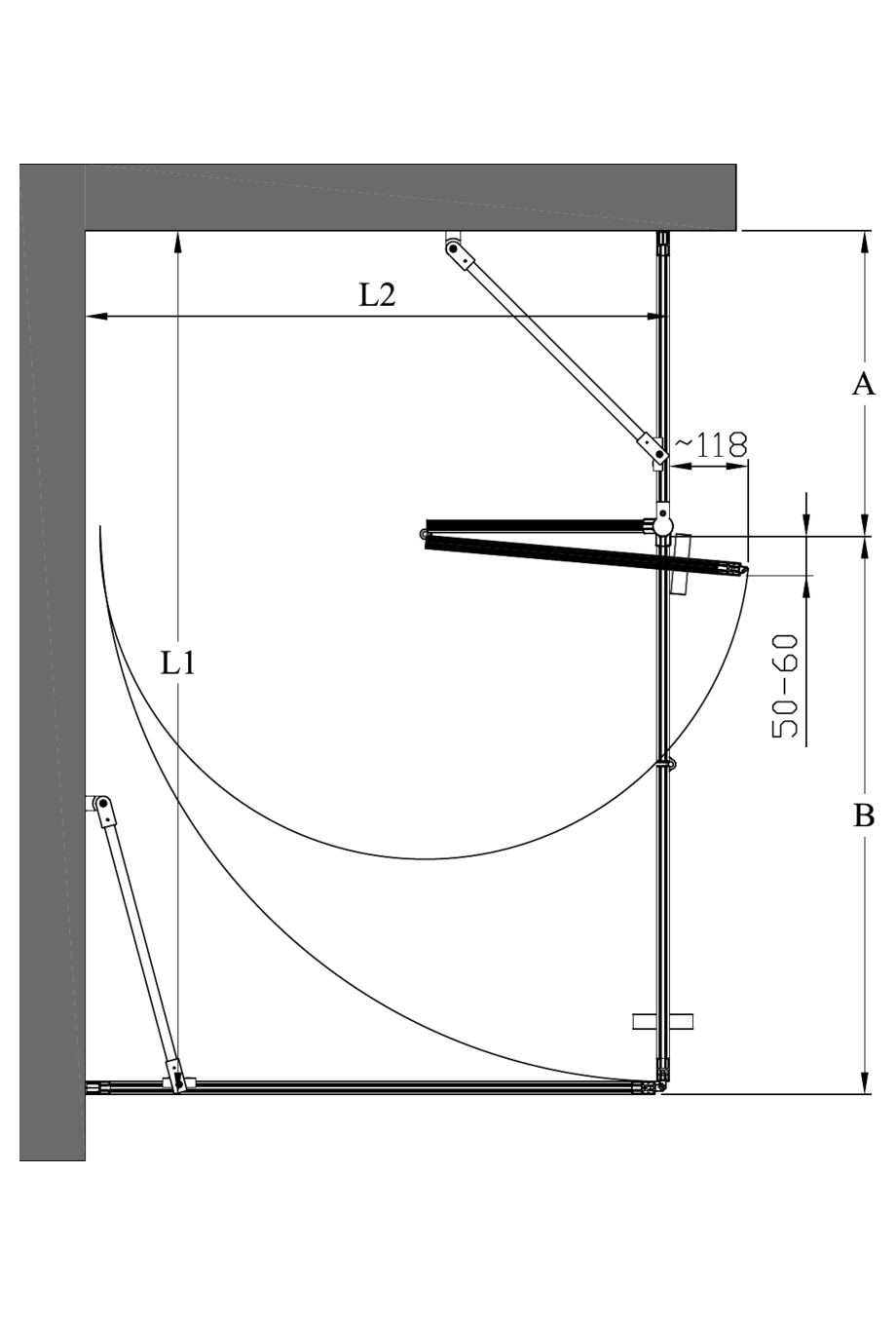

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 719mm - 726mm
- Side L2 : 902mm - 909mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Bläk 890 New York

Product code

890-61-B11

Price

0.00 €

2

Bläk 711 Shower enclosure fixed screen
White painted/Transparent/L1=719 x 1950

Product code

711 61 0069

Price

480.00 €

3

Bläk 714 Shower enclosure fixed screen
White painted/Transparent/A=260 x 1950

Product code

714 61 0026

Price

350.00 €

4

Blak 715 Shower enclosure folding door
White painted/Transparent/B=642 x 1950

Product code

715 61 0062

Price

460.00 €

5

Magnet seal

Product code

705 RL 0001

Price

45.00 €

6

Bläk -campaign -20%

Product code

DISCOUNT

Price

-258.00 €

7

TOTAL

Product code

Price

1077.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 719mm - 726mm
- Side L2 : 902mm - 909mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
