Bläk 767 Paris

Shower enclosure with hinged doors

Shower enclosure consists of two hinged doors. The product is well-suited for a shower corner where there is space for opening the door either inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the wall of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

The door panels are mounted to building wall using wall mounting profiles on each side of the enclosure space. Bottom seals and step profiles can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Installation
Icon

-1 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black/white.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

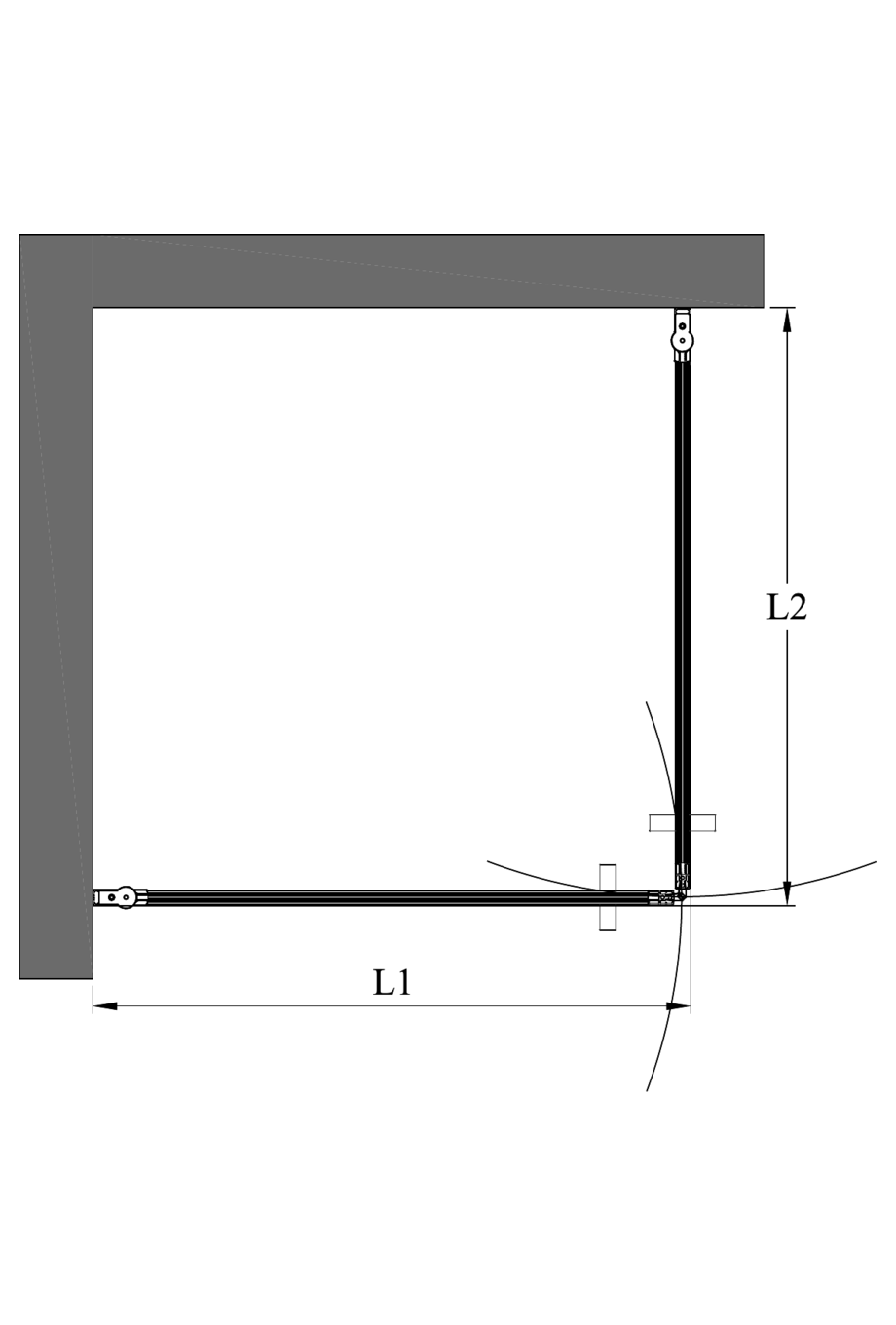

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure hinged door (L2)

X

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 717mm - 732mm
- Side L2 : 717mm - 732mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Bläk 767 Paris

Product code

767-61-44

Price

0.00 €

2

Bläk 712 Shower enclosure hinged door
White painted/Transparent/L1=717 x 1950

Product code

712 61 0069

Price

530.00 €

3

Bläk 712 Shower enclosure hinged door
White painted/Transparent/L2=717 x 1950

Product code

712 61 0069

Price

530.00 €

4

Magnet seal

Product code

705 RL 0004

Price

45.00 €

5

Bläk -campaign -20%

Product code

DISCOUNT

Price

-212.00 €

6

TOTAL

Product code

Price

893.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 717mm - 732mm
- Side L2 : 717mm - 732mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
