Forma 377 (303x304)

Shower enclosure with a folding door and a hinged door with a fixed part

Shower enclosure consists of a folding door and a fixed wall with a hinged door. The product is well-suited for a shower corner next to which are fixtures where the doors may not have enough space to properly open to both sides. Folding door does not require space for opening in the outside of the shower area, but the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. Fixed wall can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixtures. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the doors can be turned in the direction of the building walls.

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

The fixed wall and the folding door are attached from the sides to the walls of the building by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals, which limit the flow of water, can be installed under the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels. Reeded panels consists of parallel bands which diffuses the light such that image behind is not completely clear. Satin panels are not fully transparent, details cannot be made out through the panel. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. Reeded glass is only available in standard sizes.

The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure folding door (A)

X

Shower enclosure fixed screen (B)

X

Shower enclosure hinged door (C)

X

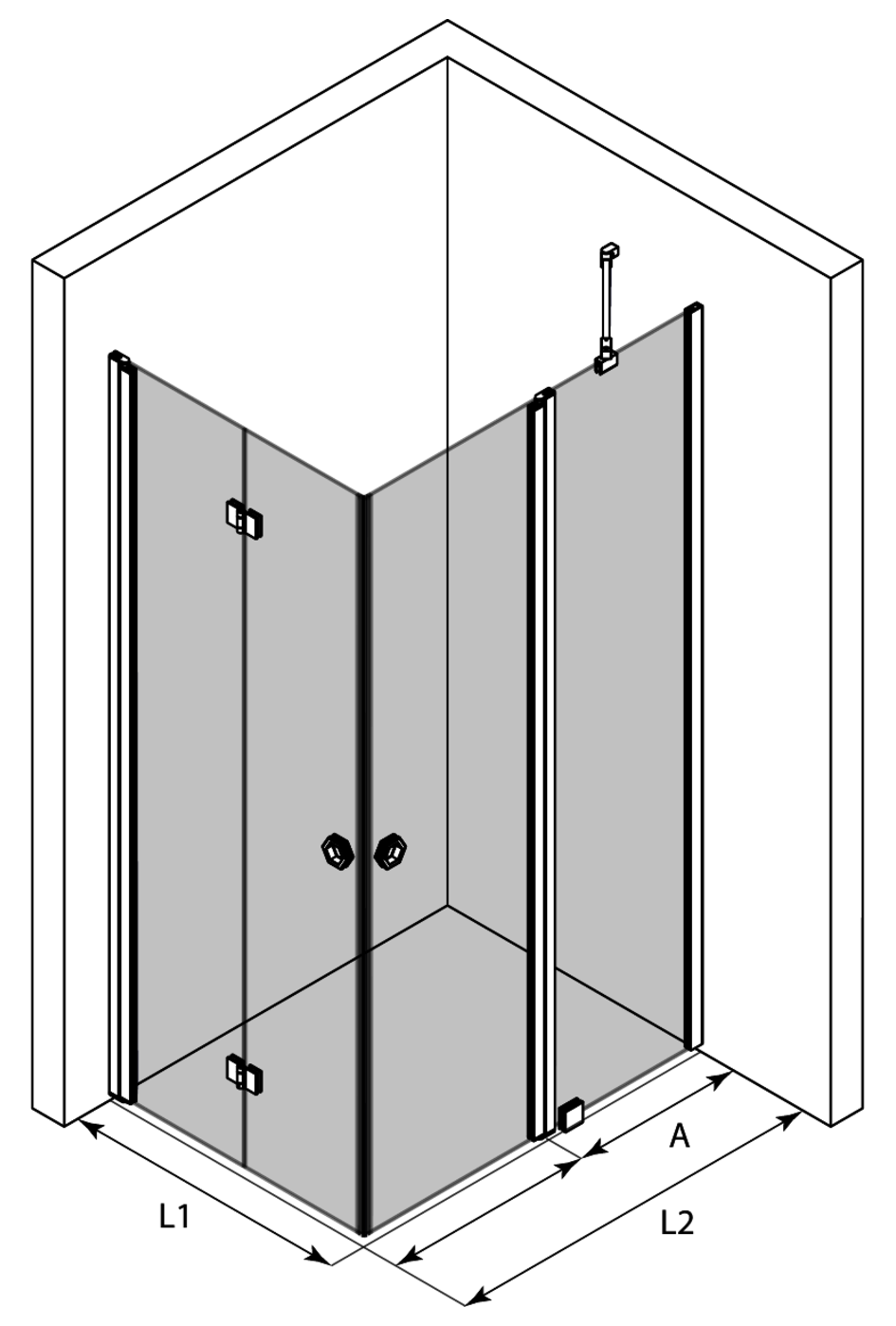

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 607mm - 622mm
- Side L2 : 765mm - 785mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Please select handle colour.

Product

Product code

Price

1

Forma 377

Product code

377-61-111

Price

0.00 €

2

Forma 303 Shower enclosure folding door
White painted/Transparent/A=607 x 2025

Product code

303 61 0058

Price

695.00 €

3

Forma 304/305 Shower enclosure fixed screen
White painted/Transparent/B=380 x 2025

Product code

304 61 0038

Price

350.00 €

4

Forma 304 Shower enclosure hinged door
White painted/Transparent/C=385 x 2025

Product code

304 61 1036

Price

350.00 €

5

Magnet seal pair

Product code

F06 6L 0001

Price

45.00 €

6

TOTAL

Product code

Price

1440.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 607mm - 622mm
- Side L2 : 765mm - 785mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379969332
