Forma 371 (301x305)

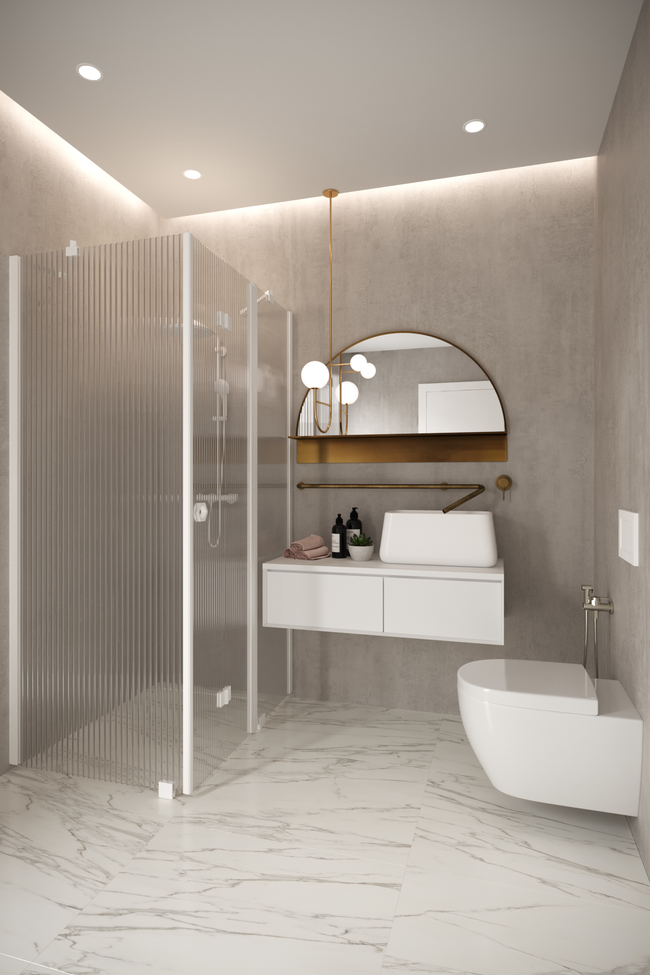

Shower enclosure with a fixed wall and a folding door with a fixed part

The shower enclosure consists of two fixed walls, into one of which a hinged door has been installed. The product is well-suited for a shower corner on the outside of which are fixtures and on the other side of which the space is cramped both inside and outside of the shower area. Folding door does not require space for opening from outside of the shower area, but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the folding door is hinged and can be dimensioned according to the fixture (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. The other fixed wall can be dimensioned so that the fixed wall protects the fixtures outside of the shower area.

The door rotates 90 degrees in both directions and is equipped with an adjustable centring. The function of the centring is to return the door to the open and closed positions. In addition, the outer panel rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the door tightly closed while showering.

Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the brace bars installed in the corners as well as from the bottom edge by the fitting glued to the floor. There is a gap of 25 mm between the panel of the fixed walls and the floor. seal (standard part)s may be installed between the panel and the Floor, in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels. Reeded panels consists of parallel bands which diffuses the light such that image behind is not completely clear. Satin panels are not fully transparent, details cannot be made out through the panel. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. Reeded glass is only available in standard sizes.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 20mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure fixed screen (L1)

X

Shower enclosure fixed screen (A)

X

Shower enclosure folding door (B)

X

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 402mm - 422mm
- Side L2 : 965mm - 985mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Please select handle colour.

Product

Product code

Price

1

Forma 371

Product code

371-61-111

Price

0.00 €

2

Forma 301 Shower enclosure fixed screen
White painted/Transparent/L1=402 x 2025

Product code

301 61 0038

Price

480.00 €

3

Forma 304/305 Shower enclosure fixed screen
White painted/Transparent/A=380 x 2025

Product code

304 61 0038

Price

350.00 €

4

Forma 305 Shower enclosure folding door
White painted/Transparent/B=585 x 2025

Product code

305 61 0056

Price

460.00 €

5

Magnet seal pair

Product code

F06 6L 0001

Price

45.00 €

6

TOTAL

Product code

Price

1335.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 402mm - 422mm
- Side L2 : 965mm - 985mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379969240
