Vetro 540 (511x512)

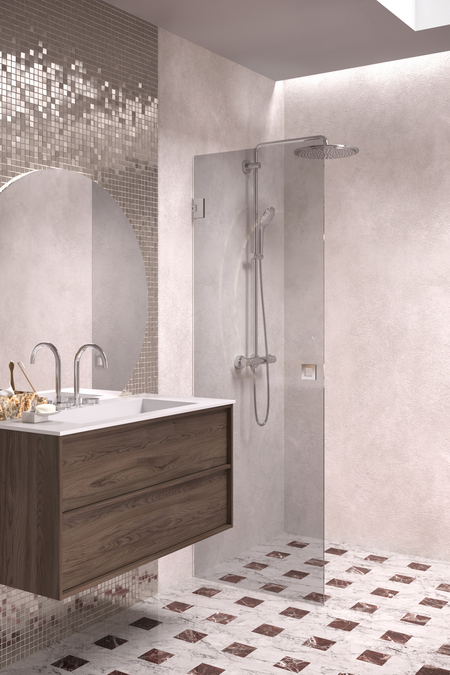

Shower enclosure with a fixed wall and hinged door

The shower enclosure consists of a fixed wall and a hinged door The product is well-suited for a shower corner with fixtures located next to it. A fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

Fixed wall and door are attached to the wall of the building from the sides by means of wall mountedfittings and hinges. The fixed wall is supported from the top edge by a brace installed in the corner and from the bottom edge by a fitting glued to the floor. Between the panel of the fixed wall and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) in order to prevent water from passing through under the panel. At the bottom edge of the door panel can be installed which restricts the flow of water. Installation guide

Installation
Icon

11 Working days

Icon

20 year warranty

The fittings used in the product, like square foot and brace bars, are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.

Product size

Shower enclosure fixed screen (L1)

X

Shower enclosure hinged door (L2)

X

The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Vetro 540 (511x512)

Product code

540-21-44

Price

0.00 €

2

Vetro 511 Shower enclosure fixed screen
Chrome plated/Transparent/L1=400 x 2000

Product code

511 21 0038

Price

530.00 €

3

Vetro 512 Shower enclosure hinged door
Chrome plated/Transparent/L2=402 x 2000

Product code

512 21 0038

Price

550.00 €

4

Magnet seal pair

Product code

915 2L 0004

Price

40.00 €

5

TOTAL

Product code

Price

1120.00 €

The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379425166
