Express 848 (812x812)

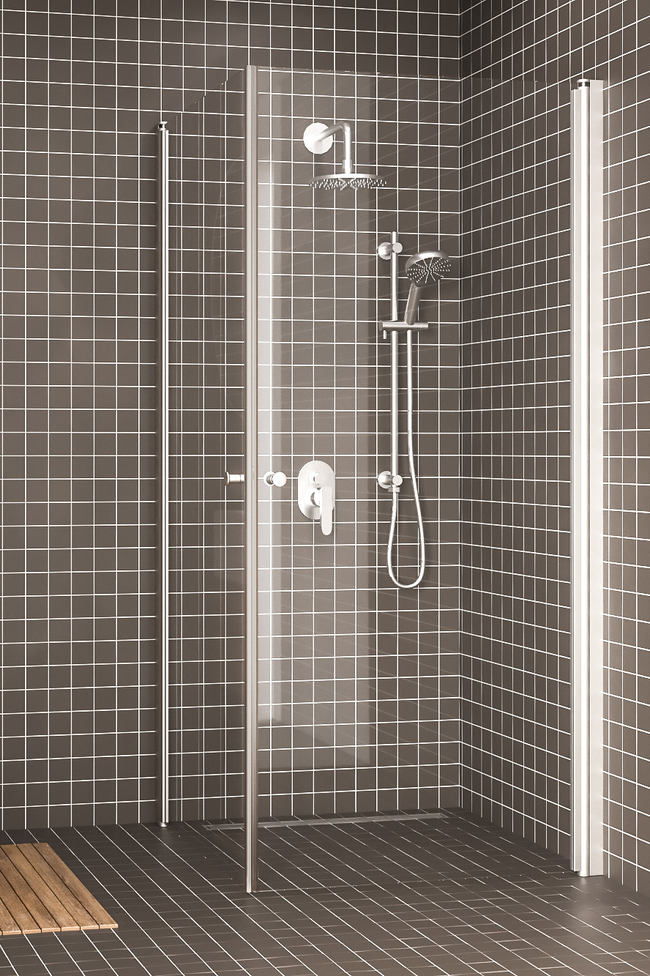

Shower enclosure with hinged doors

Shower enclosure consists of two hinged doors. The product is well-suited for a shower corner where there is space for opening the door either inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the wall of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

5 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

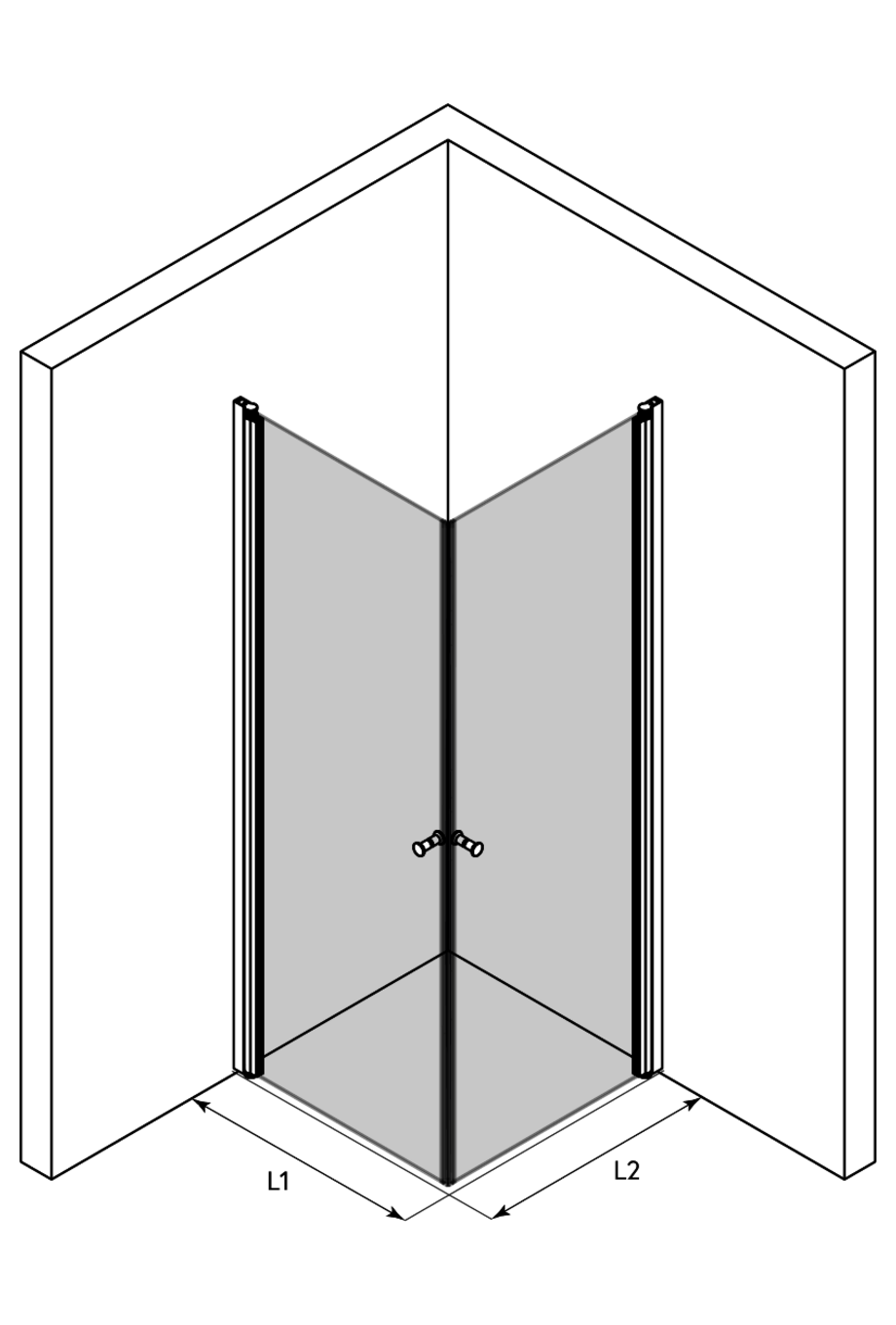

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure hinged door (L2)

X

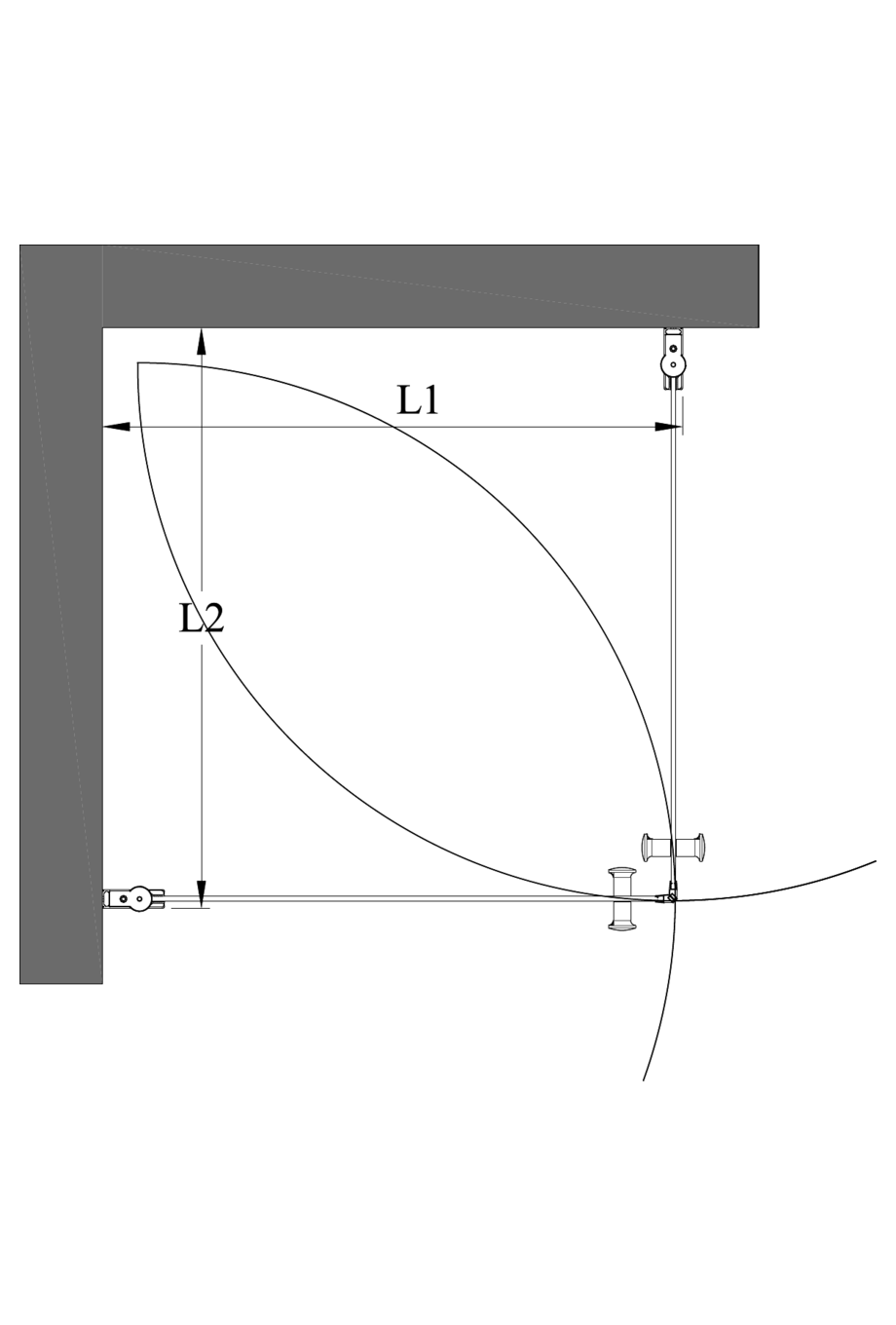

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 505mm - 520mm
- Side L2 : 505mm - 520mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Express 848 (812x812)

Product code

848-81-66

Price

0.00 €

2

Express 812 Shower enclosure hinged door
Grey anodized/Transparent/L1=505 x 1900

Product code

812 81 0047

Price

145.00 €

3

Express 812 Shower enclosure hinged door
Grey anodized/Transparent/L2=505 x 1900

Product code

812 81 0047

Price

145.00 €

4

Magnet seal pair

Product code

900 RL 0006

Price

20.00 €

5

TOTAL

Product code

Price

310.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 505mm - 520mm
- Side L2 : 505mm - 520mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379424237
