Fenic 362 (313x314)

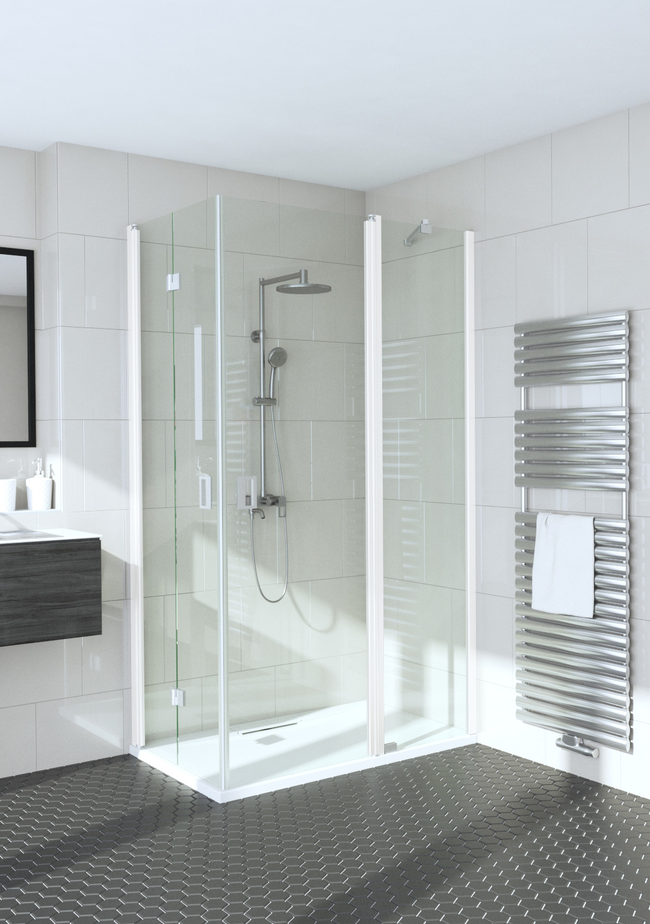

Shower enclosure with a folding door and a hinged door with a fixed part

Shower enclosure consists of a folding door and a fixed wall to which has been is hinged a hinged door. The product is well-suited for a shower corner next to which there are fixtures and where the doors may not have enough space to properly open to both sides. The folding door does not require space for opening in the outside of the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. The fixed wall can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixture. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.

The fixed wall and the folding door are attached from the sides to the walls of the building by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals, which limit the flow of water, can be installed under the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure folding door (L1)

X

Shower enclosure fixed screen (A)

X

Shower enclosure hinged door (B)

X

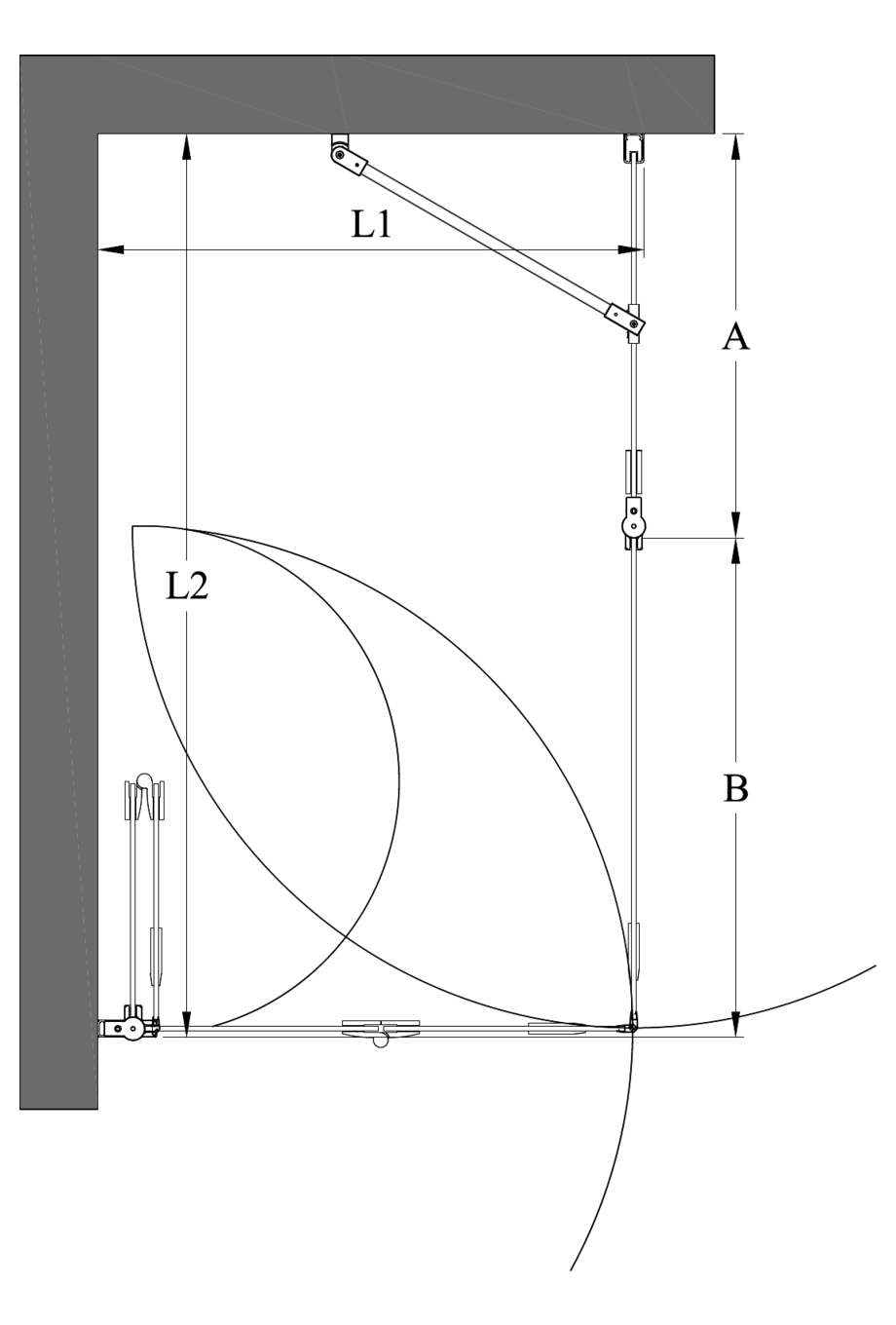

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 598mm - 613mm
- Side L2 : 755mm - 775mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Fenic 362 (313x314)

Product code

362-61-154

Price

0.00 €

2

Fenic 313 Shower enclosure folding door
White painted/Transparent/L1=598 x 2000

Product code

313 61 0057

Price

465.00 €

3

Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/A=417 x 2000

Product code

314 61 0042

Price

257.50 €

4

Fenic 314 Shower enclosure hinged door
White painted/Transparent/B=338 x 2000

Product code

314 61 1031

Price

257.50 €

5

Magnet seal pair

Product code

929 6L 0001

Price

40.00 €

6

TOTAL

Product code

Price

1020.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 598mm - 613mm
- Side L2 : 755mm - 775mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379423230
