Fenic 358 (312x313)

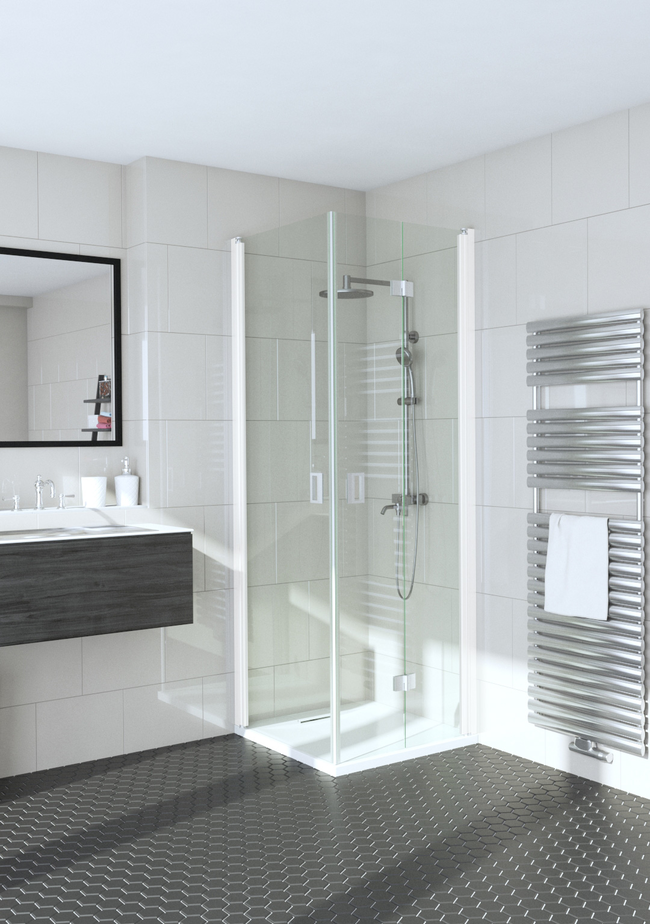

Shower enclosure with a hinged door and a folding door

Shower enclosure consists of a hinged door and a folding door. The product is well-suited for a shower corner where doors may not have the space to properly open outward on both sides. The folding door does not require space from outside the shower area, but instead the door rotates folding inside the shower area so that the door panels fold into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure folding door (L2)

X

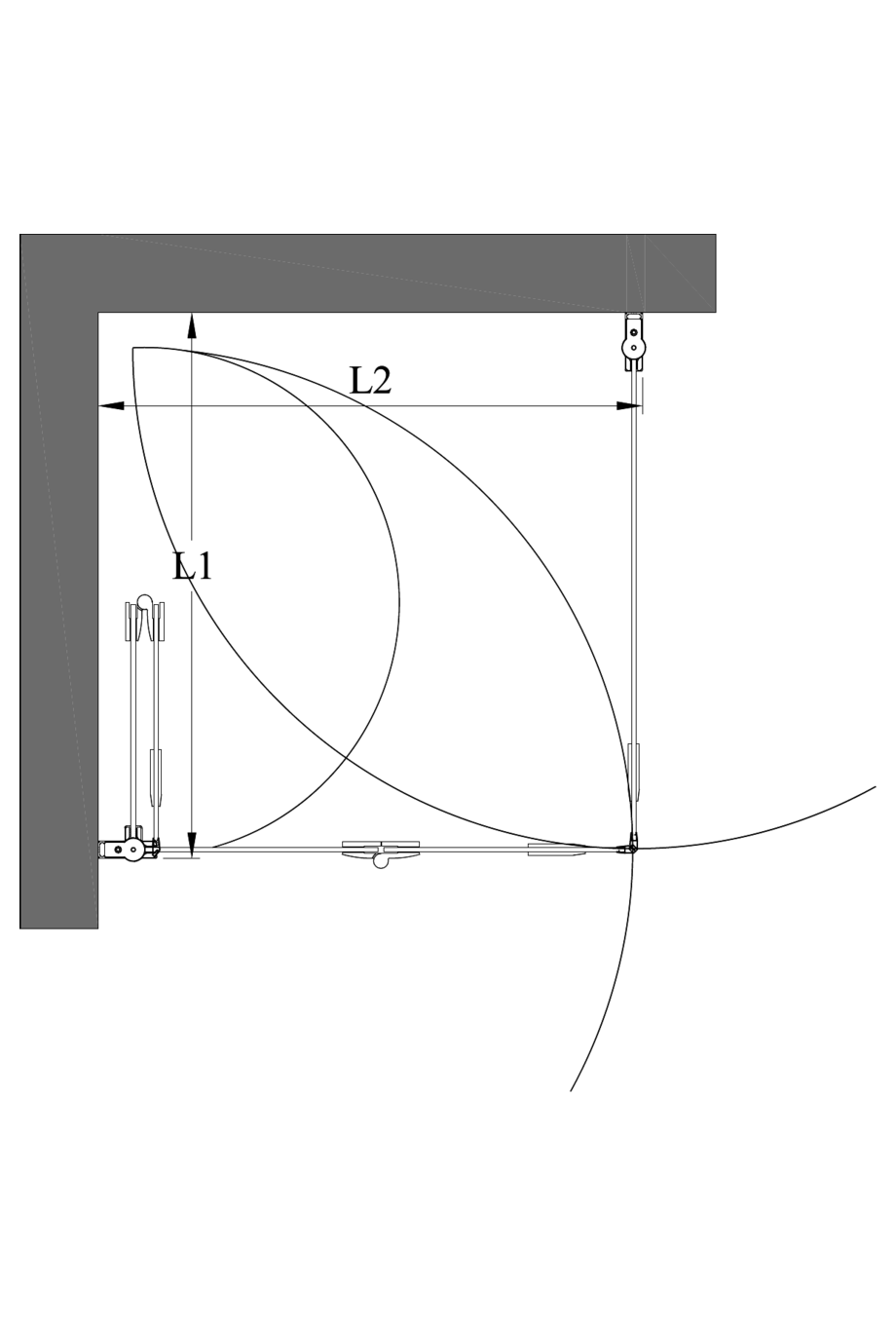

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 400mm - 415mm
- Side L2 : 598mm - 613mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Fenic 358 (312x313)

Product code

358-61-41

Price

0.00 €

2

Fenic 312 Shower enclosure hinged door
White painted/Transparent/L1=400 x 2000

Product code

312 61 0038

Price

360.00 €

3

Fenic 313 Shower enclosure folding door
White painted/Transparent/L2=598 x 2000

Product code

313 61 0057

Price

465.00 €

4

Magnet seal pair

Product code

929 6L 0004

Price

40.00 €

5

TOTAL

Product code

Price

865.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 400mm - 415mm
- Side L2 : 598mm - 613mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379423070
