Fenic 356 (311x315)

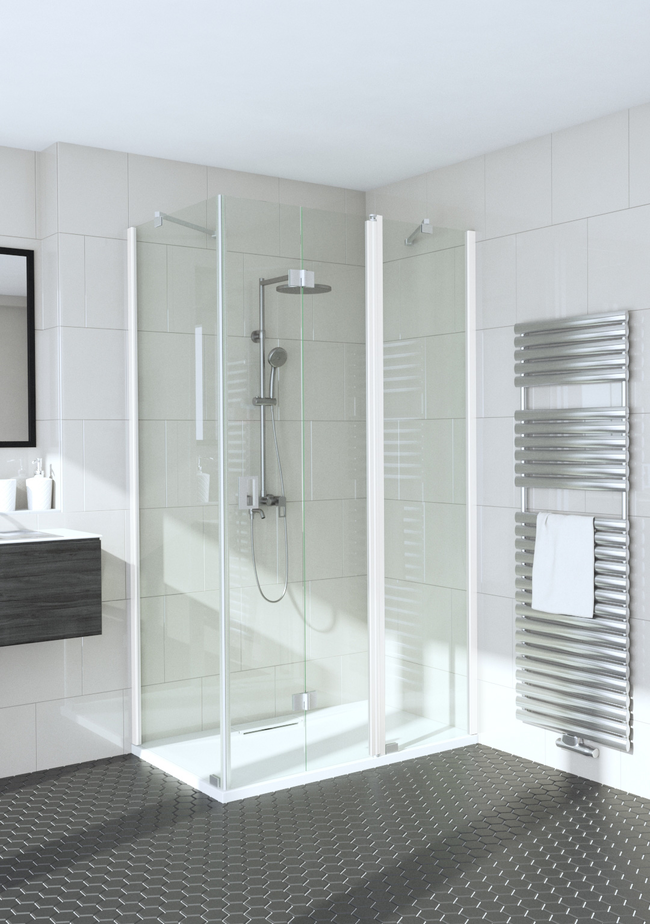

Shower enclosure with a fixed wall and a folding door with a fixed part

The shower enclosure consists of two fixed walls, into one of which a hinged hinged folding door has been attached. The product is well-suited for a shower corner outside, next to which on the one side are fixtures and on the other side the space is cramped both inside and outside of the shower area. The folding door does not require space for opening from outside of the shower area; instead it folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the folding door is hinged can be dimensioned according to the fixtures (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. The other fixed wall can be dimensioned so that the fixed wall protects the fixtures outside of the shower area.

The door rotates 90 degrees in both directionsand is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel turns 180 degrees in relation to the inner panel so that the panels fold against each other into the inside portion of the shower area. A magnet seal keeps the door tightly closed during showering.

Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the brace bars installed in the corners as well as from the bottom edge by the fitting glued to the floor. There is a gap of 25 mm between the panel of the fixed walls and the floor. seal (standard part)s may be installed between the panel and the Floor, in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 20mm. The adjustment tolerance may be used for levelling the tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure fixed screen (L1)

X

Shower enclosure fixed screen (B)

X

Shower enclosure folding door (C)

X

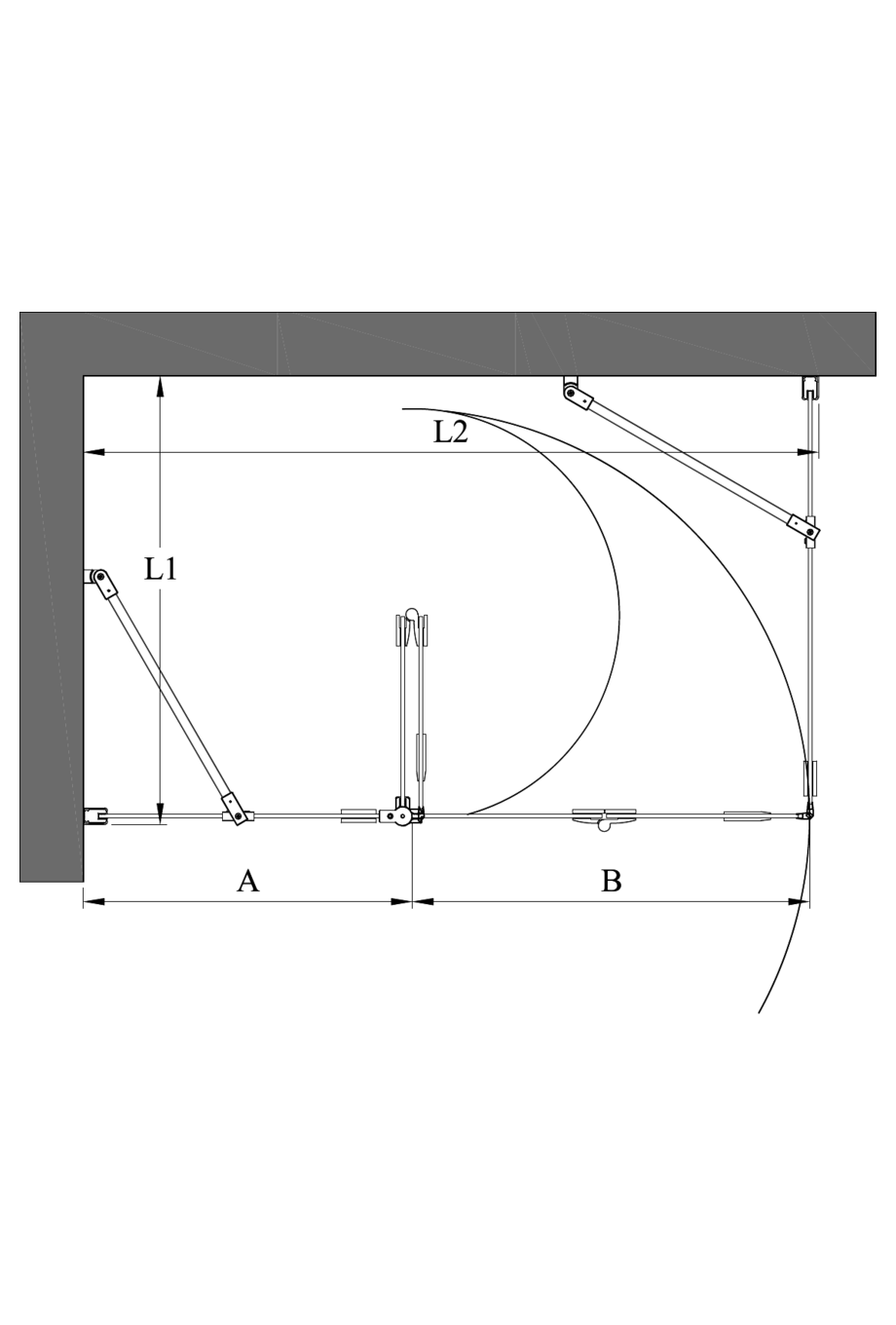

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Fenic 356 (311x315)

Product code

356-61-551

Price

0.00 €

2

Fenic 311 Shower enclosure fixed screen
White painted/Transparent/L1=405 x 2000

Product code

311 61 0038

Price

290.00 €

3

Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/B=417 x 2000

Product code

314 61 0042

Price

257.50 €

4

Fenic 315 Shower enclosure folding door
White painted/Transparent/C=536 x 2000

Product code

315 61 1051

Price

367.50 €

5

Magnet seal pair

Product code

929 6L 0001

Price

40.00 €

6

TOTAL

Product code

Price

955.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379422998
