Fenic 353 (311x312)

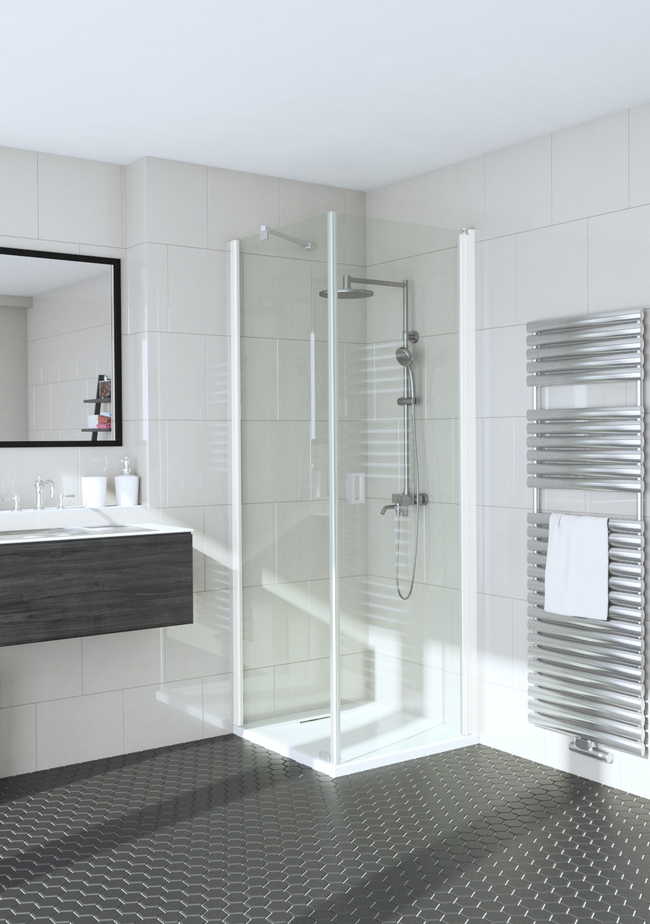

Shower enclosure with a fixed wall and hinged door

The shower enclosure consists of a fixed wall and a hinged door The product is well-suited for a shower corner with fixtures located next to it. A fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

The fixed wall and door are attached to the wall of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge with the brace installed in the corner and from the bottom corner with the fixture glued to the floor. There will be a 25 mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor, in order to prevent water from flowing under the panel. In the bottom edge of the door panel which restricts the flow of water.

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building’s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure fixed screen (L1)

X

Shower enclosure hinged door (L2)

X

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 400mm - 415mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


Product

Product code

Price

1

Fenic 353 (311x312)

Product code

353-61-54

Price

0.00 €

2

Fenic 311 Shower enclosure fixed screen
White painted/Transparent/L1=405 x 2000

Product code

311 61 0038

Price

290.00 €

3

Fenic 312 Shower enclosure hinged door
White painted/Transparent/L2=400 x 2000

Product code

312 61 0038

Price

360.00 €

4

Magnet seal pair

Product code

929 6L 0004

Price

40.00 €

5

TOTAL

Product code

Price

690.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 400mm - 415mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379422875
