Vetro 657

Glass wall with fixed panel on handle side

The product is well-suited as a partition wall in all interior spaces The door does not have any frames, the hinges are mounted directly to the building wall. The side panel adds light and the feeling of spaciousness in the space.

The door rotates 90 degrees in both directions and is equipped with an adjustable Centring. The centring attempts to return the door back to the open and closed positions.

The hinges of the glass door are mounted directly to the building wall. The side panel is mounted to the wall and the ceiling of the building by wall mountedlaths and floor fittings. There will be a 25 mm gap between the panel and the floor. Installation guide

Installation
Icon

24 Working days

Icon

20 year warranty

Door hinges and the fittings of the side window are manufactured of brass alloy. Surface treatment options are chrome plated, brass, grey anodized and black painted. The handle is by choice either chrome plated, brass or black painted brass alloy or unfinished alder. Please note that the chrome plated option is with grey anodized profiles and chrome plated fittings.

The product is manufactured of 8mm thick tempered safety panel (EN 12150). Clear and smoke are smooth surfaced and transparent panels

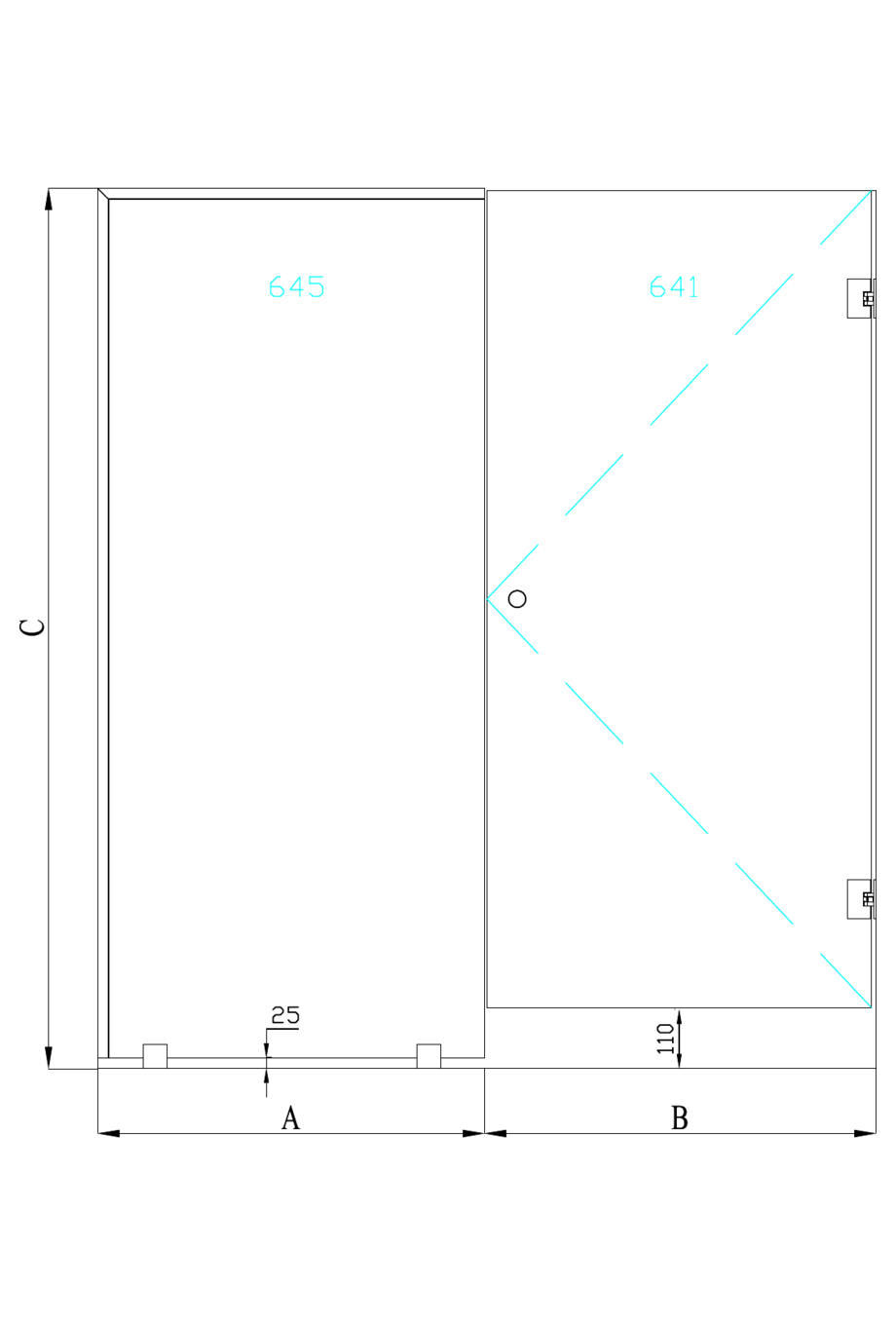

The size of the shower door can be selected from the standard dimensions(700/800/900 x 2000) or it can be manufactured by special dimensions; the side panels are always manufactured based on special dimensions. When selecting the size of the door, the width is the width of the installation opening and the height is the height of the panel pane. When dimensioning the height of the installation opening of the door, a 5mm reserve is automatically left at the top edge of the panel and a 110mm reserve is left at the bottom edge. When selecting the side panel, the width and the height are the width and the height of the installation opening. The installation and adjustment ranges are included automatically in the dimensioning of the panel panes of the side panels.If the size of the door exceeds 1.7m2 an additional hinge is necessary to provide additional support.

Product size

The selected product can be installed into the opening the total width L1 of which is 1700mm and the total length L2 2000mm.:


The round metal handle and the short metal handle are manufactured from chromed brass alloy. The short wooden handle is unfinished alder. Out of handle options, the round metal handle and the short wooden handle are also well-suited for use on a sauna door. If the size of the door exceeds 1.7m2 , please select the handle option with additional hinge.

Product

Product code

Price

1

Vetro 657

Product code

657-21-00

Price

0.00 €

2

Vetro 641 Glass door
Chrome plated/Transparent=800 x 1885

Product code

641 21 0080

Price

470.00 €

3

Vetro 645 Panel
Chrome plated/Transparent=900 x 2000

Product code

645 21 0000

Price

420.00 €

4

Maintenance manual /

Product code

059 RL MMMM

Price

0.00 €

5

Round metal knob

Product code

875 21 0008

Price

0.00 €

6

TOTAL

Product code

Price

890.00 €

The selected product can be installed into the opening the total width L1 of which is 1700mm and the total length L2 2000mm.:

EAN: 6418379426187
