Vetro 662

Glass door with upper window

The door rotates 90 degrees in both directions and is equipped with an adjustable centering. The centering attempts to return the door back to the open and closed positions.

The hinges of the glass door are mounted directly to the building wall. Installation guide

Installation
Icon

24 Working days

Icon

20 year warranty

The hinges of the door are manufactured of brass alloy. Surface treatment options are chrome plated, brass, grey anodized and black painted. The handle is by choice either chrome plated, brass or black painted brass alloy or unfinished alder. Please note that the chrome plated option is with grey anodized profiles and chrome plated fittings.

The product is manufactured of 8mm thick tempered safety panel (EN 12150). Clear and smoke are smooth surfaced and transparent panels

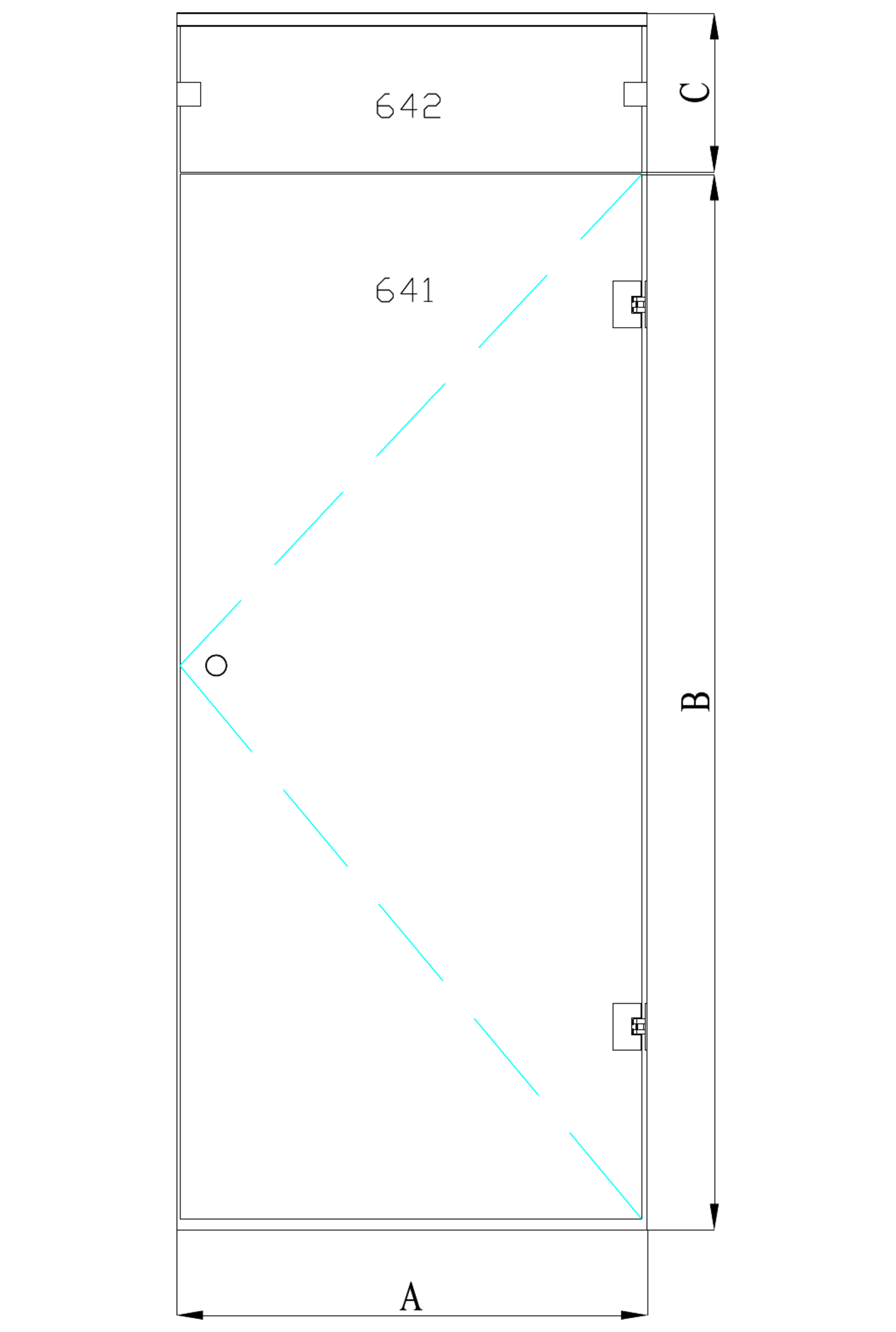

The size of the shower door can be selected from the standard dimensions (700/800/900 x 1910) or it can be manufactured by special dimensions; the upper panel is always manufactured by special dimensions. When selecting the size, the width is the width of the installation opening and the height is the height of the panel pane. When dimensioning the door, a reserve of at least 5mm is typically left at the top edge of the panel and a reserve of at least 20 mm is left at the bottom edge of the panel. If the size of the door exceeds 1.7m2 an additional hinge is necessary to provide additional support.

Product size

:


The round metal handle and the short metal handle are manufactured from chromed brass alloy. The short wooden handle is unfinished alder. Out of handle options, the round metal handle and the short wooden handle are also well-suited for use on a sauna door. If the size of the door exceeds 1.7m2 , please select the handle option with additional hinge.

Product

Product code

Price

1

Vetro 662

Product code

662-21-00

Price

0.00 €

2

Vetro 641 Glass door
Chrome plated/Transparent=800 x 1885

Product code

641 21 0080

Price

470.00 €

3

Vetro 638 Upper window
Chrome plated/Transparent=800 x 250

Product code

638 21 0000

Price

100.00 €

4

Maintenance manual /

Product code

059 RL MMMM

Price

0.00 €

5

Round metal knob

Product code

875 21 0008

Price

0.00 €

6

TOTAL

Product code

Price

570.00 €

:

EAN: 6418379426842
