Fenic 360 (312x315)
Shower enclosure with a hinged door and a folding door with a fixed part
Shower enclosure consists of a hinged door and a fixed wall to which has been hinged folding door has been attached. The product is well-suited for a shower corner on the other side of which the space is cramped both outside and inside the shower area. Folding door does not require space for opening from outside the shower area but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall can be dimensioned according to the fixtures (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directions and are equipped with adjustable centring. The centring attempts to return the door to the open and closed positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel, so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.
Shower wall and door are attached to the walls of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide
19 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

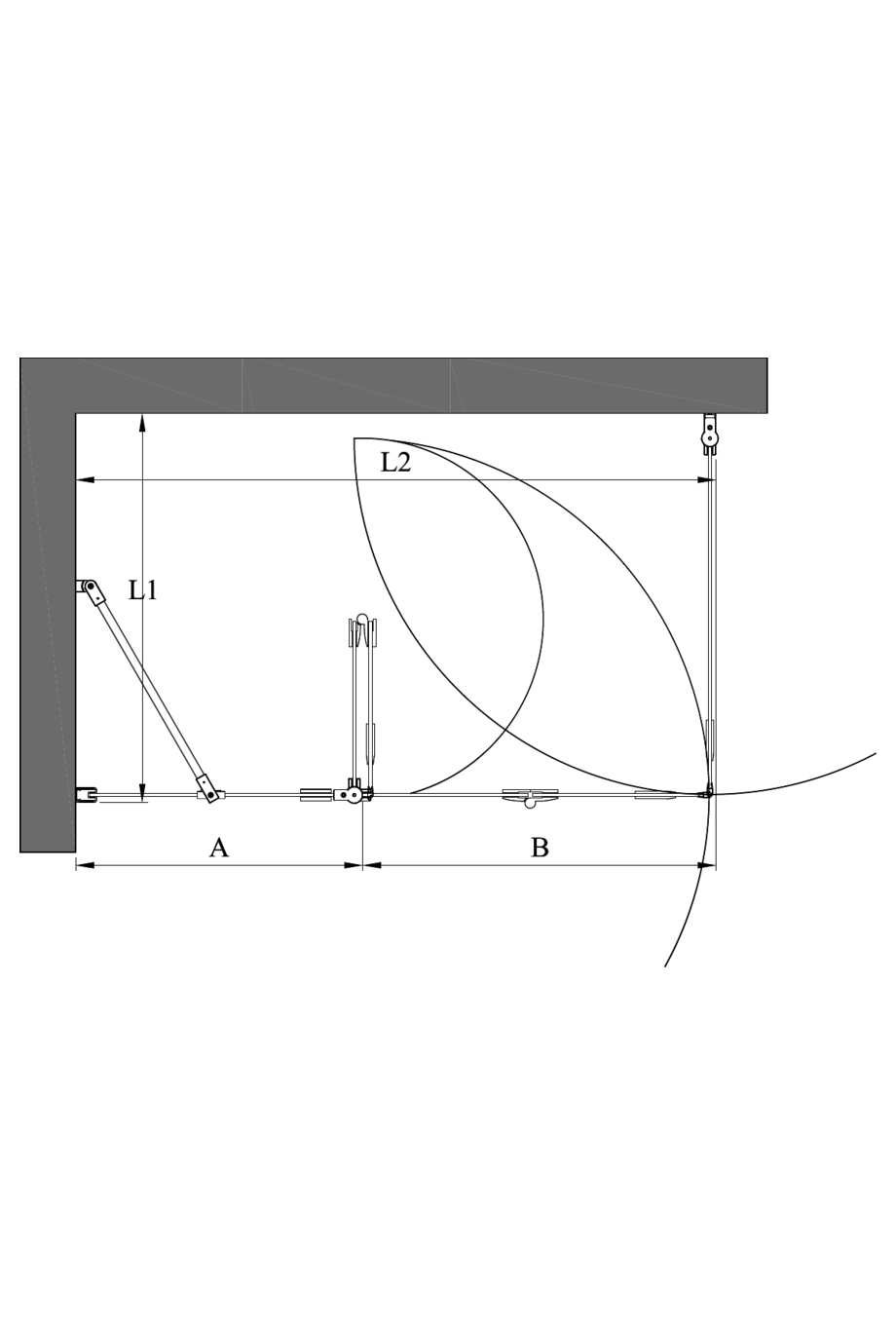

Product size
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 400mm - 415mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Fenic 360 (312x315)
Product code
360-61-451
Price
0.00 €
2
Fenic 312 Shower enclosure hinged door
White painted/Transparent/L1=400 x 2000
Product code
312 61 0038
Price
360.00 €
3
Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/B=417 x 2000
Product code
314 61 0042
Price
257.50 €
4
Fenic 315 Shower enclosure folding door
White painted/Transparent/C=536 x 2000
Product code
315 61 1051
Price
367.50 €
5
Magnet seal pair
Product code
929 6L 0004
Price
40.00 €
6
TOTAL
Product code
Price
1025.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 400mm - 415mm
- Side L2 : 953mm - 973mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
