Fenic 355 (311x314)

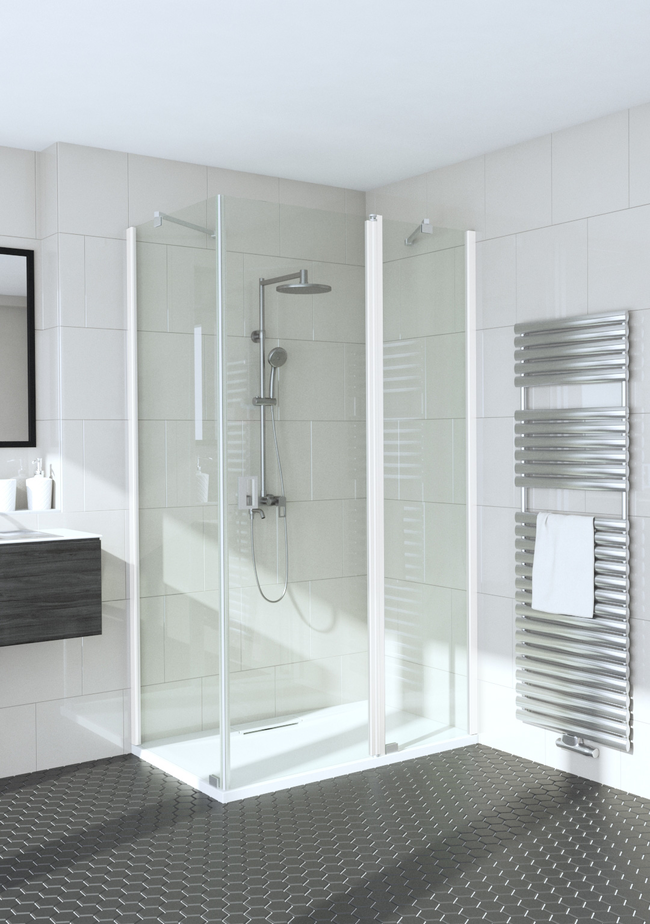

Shower enclosure with a fixed wall and a hinged door with a fixed part
The shower enclosure consists of two fixed walls, into one of which a hinged door has been attached. The product is well-suited for a shower corner on the outside of which are fixtures on both sides. Fixed walls can be measured according to the depth of the fixtures so that when opened, the door does not hit the fixtures
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the braces installed in the corners as well as from the bottom edge by the fixture glued to the floor. Between the panels of the fixed wall and the floor will be a 25mm high gap. A seal (standard part) may be installed between the panel and the floor, may be installed seal (standard part)s , so that water will not be able to flow under the panels. In the bottom edge of the door panel which restricts the flow of water. Installation guide
19 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 20mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 755mm - 775mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Fenic 355 (311x314)
Product code
355-61-554
Price
0.00 €
2
Fenic 311 Shower enclosure fixed screen
White painted/Transparent/L1=405 x 2000
Product code
311 61 0038
Price
290.00 €
3
Fenic 314/315 Shower enclosure fixed screen
White painted/Transparent/B=417 x 2000
Product code
314 61 0042
Price
257.50 €
4
Fenic 314 Shower enclosure hinged door
White painted/Transparent/C=338 x 2000
Product code
314 61 1031
Price
257.50 €
5
Magnet seal pair
Product code
929 6L 0004
Price
40.00 €
6
TOTAL
Product code
Price
845.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 405mm - 425mm
- Side L2 : 755mm - 775mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
