Bläk 839 Tokyo

Alcove fitting with a hinged double door where one of which has a fixed part

The Alcove fitting configuration consists of a folding door and a fixed wall into which a hinged folding door. The product is well-suited for a shower enclosure a shower enclosure where doors may not have the space to properly open outwards and on the other side of which the space is cramped also on the inside of the shower area. Folding door does not require space for opening from outside the shower area but instead folds into the small space inside the shower area in the direction of the building wall. Fixed wall can be dimensioned according to the fixtures (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

The door panel and the fixed panel with the door panel attached to it are mounted to building wall using wall mounting profiles on each side of the enclosure space. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Icon

19 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 22mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected instead when ordering.

Product size

Alcove folding door (A)

X

Alcove folding door (B)

X

Alcove fixed screen (C)

X

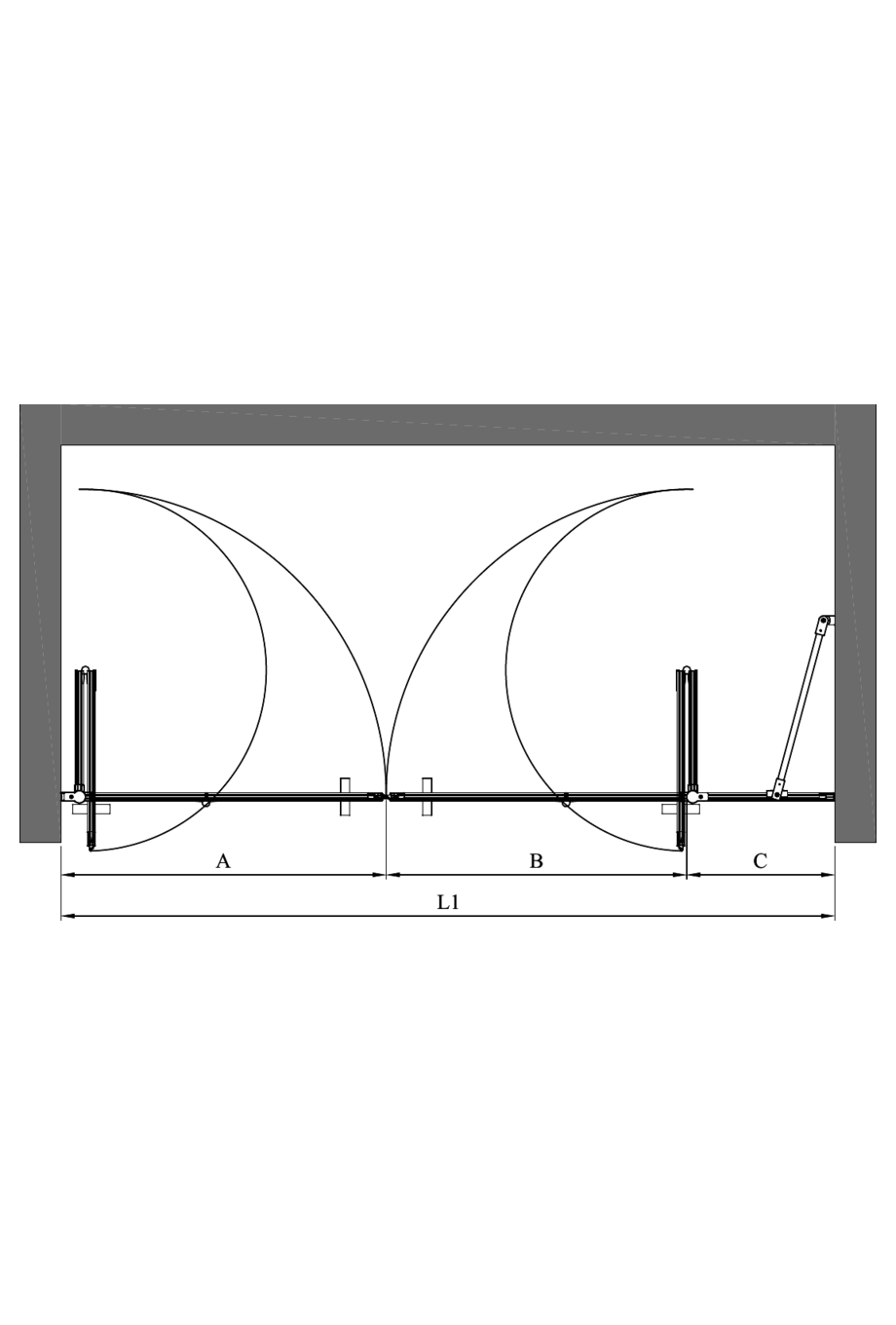

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1584mm
- At its widest: 1606mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product

Product code

Price

1

Bläk 839 Tokyo

Product code

839-61-111

Price

0.00 €

2

Blak 713 Alcove folding door
White painted/Transparent/A=692 x 1950

Product code

713 61 0070

Price

490.00 €

3

Blak 715 Alcove folding door
White painted/Transparent/B=632 x 1950

Product code

715 61 0062

Price

395.00 €

4

Bläk 714 Alcove fixed screen
White painted/Transparent/C=260 x 1950

Product code

714 61 0026

Price

295.00 €

5

Magnet seal pair

Product code

705 RL 0001

Price

40.00 €

6

Tokyo -frame

Product code

702 6L 0001

Price

60.00 €

7

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

8

TOTAL

Product code

Price

1380.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1584mm
- At its widest: 1606mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN:
