Bläk 827 Tokyo

The alcove fitting on the fixed wall and on the folding door with a fixed part

The Alcove fitting configuration consists of two fixed walls, one of which is a hinged folding door. The product is well-suited for a shower enclosure outside of which there are fixtures and on the other side of which space is cramped, both on the inside and outside of the shower area. The folding door does not require space for opening from outside of the shower area; instead, it folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the door has been hinged can be dimensioned according to the fixtures (e.g. the mixer) in the shower area so that the door does not hit the fixtures when being folded. The other fixed wall can be dimensioned so that the fixed wall protects the fixtures outside of the shower area.

The door rotates 90 degrees in both directions and is equipped with an adjustable centring. The function of the centring is to return the door to the open and closed positions. In addition, the outer panel rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the door tightly closed while showering.

The wall and the door with fixed part panels are mounted to building wall using wall mounting profiles on each side of the enclosure space. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Installation
Icon

-1 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black/white.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 14mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Alcove fixed screen (A)

X

Alcove folding door (B)

X

Alcove fixed screen (C)

X

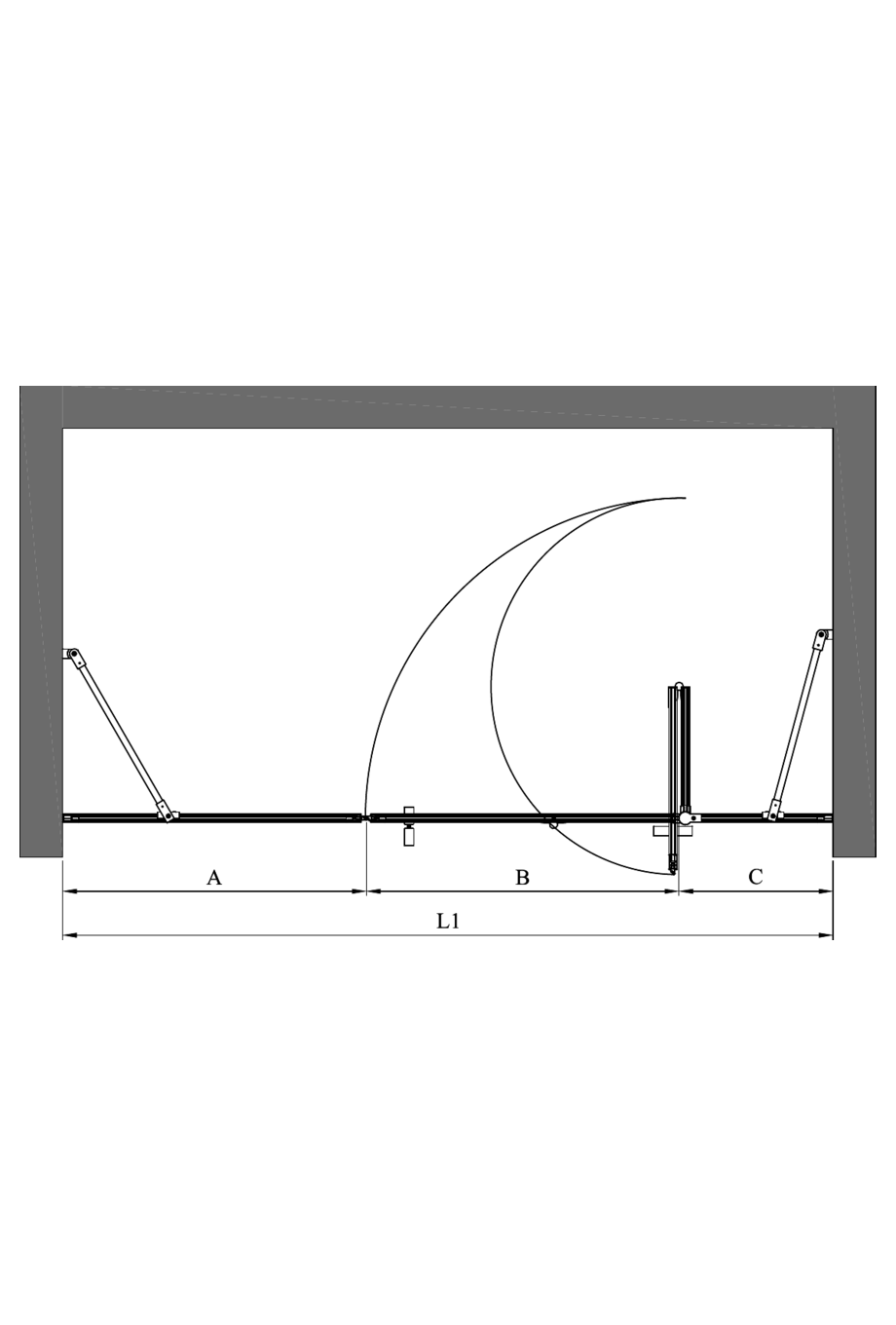

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1601mm
- At its widest: 1615mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Bläk 827 Tokyo

Product code

827-61-B11

Price

0.00 €

2

Bläk 711 Alcove fixed screen
White painted/Transparent/A=709 x 1950

Product code

711 61 0069

Price

480.00 €

3

Blak 715 Alcove folding door
White painted/Transparent/B=632 x 1950

Product code

715 61 0062

Price

460.00 €

4

Bläk 714 Alcove fixed screen
White painted/Transparent/C=260 x 1950

Product code

714 61 0026

Price

350.00 €

5

Tokyo -frame

Product code

702 RL 0011

Price

110.00 €

6

Grid placement

Product code

783 RL 0011

Price

0.00 €

7

Magnet seal

Product code

705 RL 0001

Price

45.00 €

8

Tokyo -grid

Product code

708 RL 0001

Price

55.00 €

9

Grid placement

Product code

780 RL 0001

Price

0.00 €

10

Tokyo -grid

Product code

708 RL 0001

Price

55.00 €

11

Grid placement

Product code

780 RL 0001

Price

0.00 €

12

Bläk -campaign -20%

Product code

DISCOUNT

Price

-258.00 €

13

TOTAL

Product code

Price

1297.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1601mm
- At its widest: 1615mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
