Bläk 750 Paris

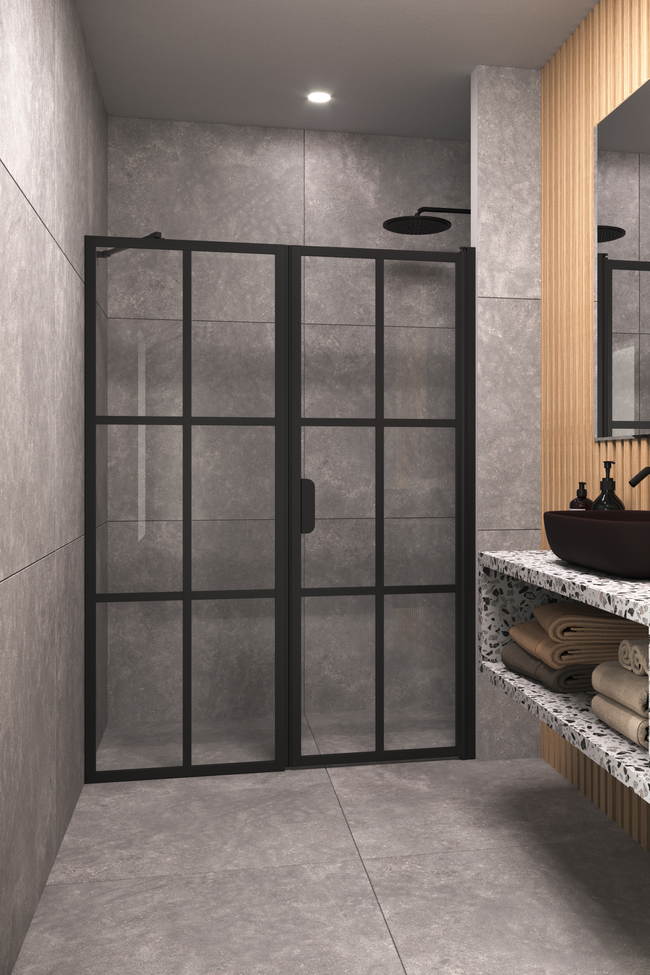

Alcove fitting with a fixed wall and hinged door

Alcove fixture with a door consists of a fixed wall and a hinged door. The product is well-suited for a shower enclosure with fixtures located next to it. The fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

The fixed shower panel with a tuning leg set up on the bottom is attached to the wall mounting profile with self-drilling screws. The door panel is mounted to the other side of the enclosure using wall mounting profile. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Magnet seals are installed on each of the doorway panels to keep door tightly closed. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention.

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. Profiles are painted black (RAL 9005) through powder coating. The fittings used in the product, like square foot and brace bars, are brass alloy painted black.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 22mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Alcove fixed screen (A)

X

Alcove hinged door (B)

X

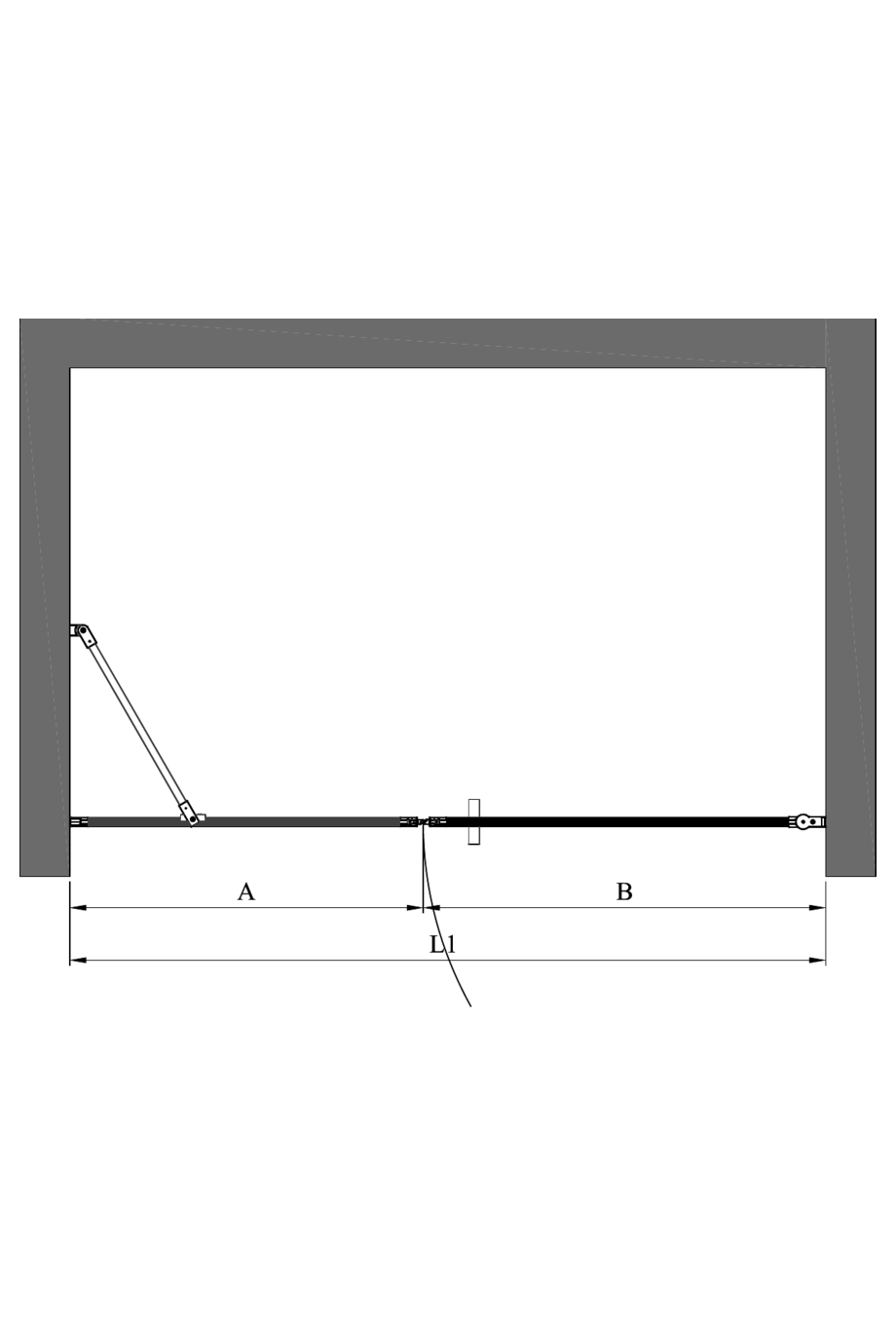

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1416mm
- At its widest: 1438mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Bläk 750 Paris

Product code

750-91-B4

Price

0.00 €

2

Bläk 711 Alcove fixed screen
Black painted/Transparent/A=709 x 1950

Product code

711 91 0069

Price

480.00 €

3

Bläk 712 Alcove hinged door
Black painted/Transparent/B=707 x 1950

Product code

712 91 0069

Price

530.00 €

4

Grid placement

Product code

782 RL 0011

Price

0.00 €

5

Bläk 703 Paris -frame Paris -frame

Product code

703 RL 0011

Price

220.00 €

6

Magnet seal

Product code

705 RL 0004

Price

45.00 €

7

Grid placement

Product code

781 RL 0004

Price

0.00 €

8

Bläk 703 Paris -frame Paris -frame

Product code

703 RL 0004

Price

220.00 €

9

Bläk -campaign -20%

Product code

DISCOUNT

Price

-202.00 €

10

TOTAL

Product code

Price

1293.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1416mm
- At its widest: 1438mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379428167
