Express 843 (812+812)

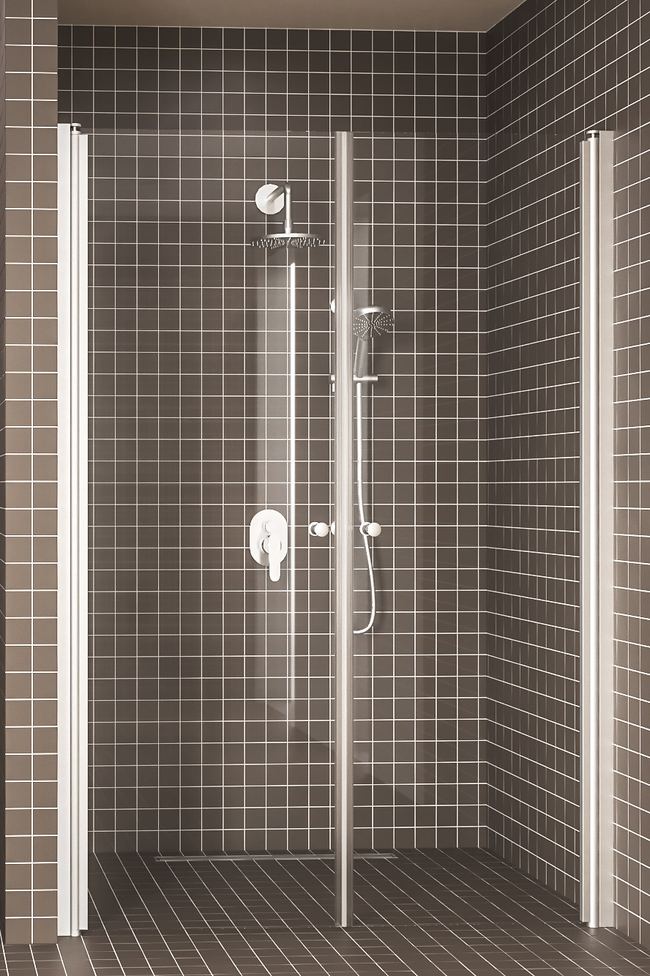

Alcove fitting with a hinged double door

Alcove fixture consists of two hinged doors. The product is well-suited for a shower enclosure where there is space for opening the door either inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

5 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 30mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Alcove hinged door (A)

X

Alcove hinged door (B)

X

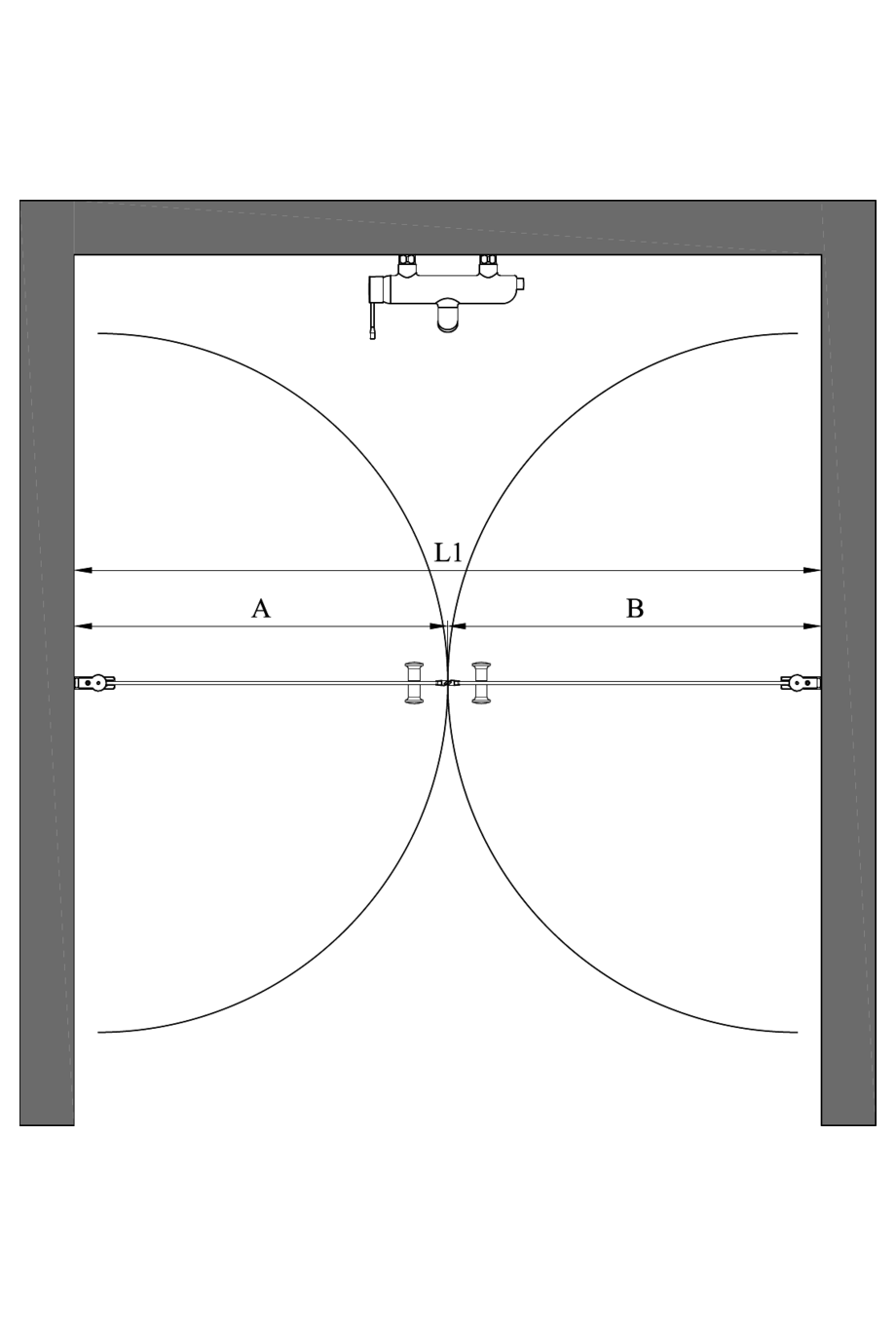

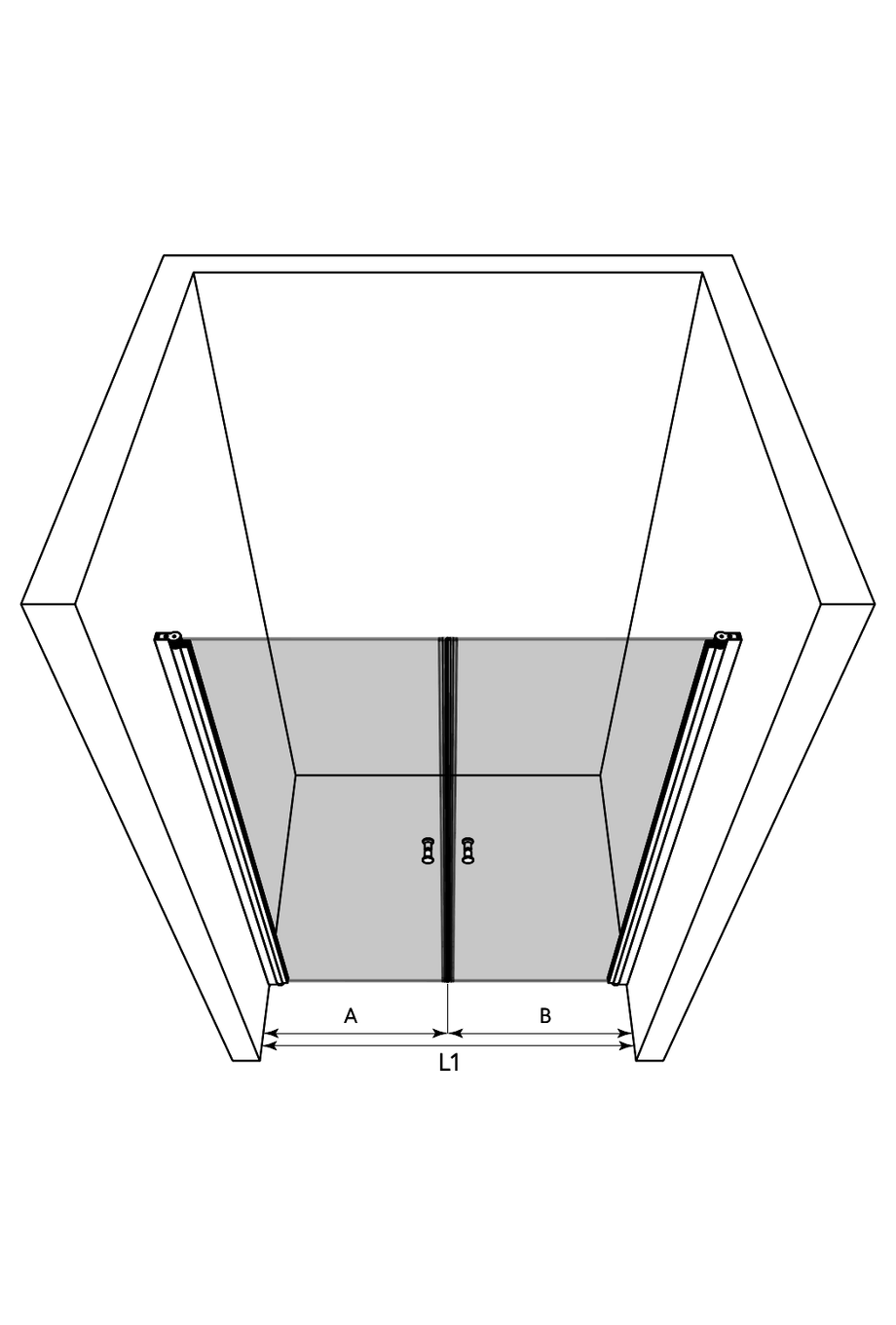

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 982mm
- At its widest: 1012mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Express 843 (812+812)

Product code

843-81-66

Price

0.00 €

2

Express 812 Alcove hinged door
Grey anodized/Transparent/A=491 x 1900

Product code

812 81 0047

Price

145.00 €

3

Express 812 Alcove hinged door
Grey anodized/Transparent/B=491 x 1900

Product code

812 81 0047

Price

145.00 €

4

Magnet seal pair

Product code

900 RL 0006

Price

20.00 €

5

TOTAL

Product code

Price

310.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 982mm
- At its widest: 1012mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379424138
