Express 842 (811+813)

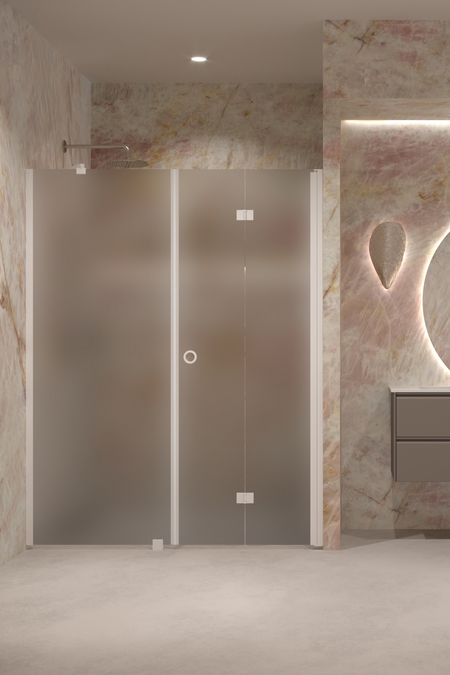

Alcove fitting with a fixed wall and folding door

Alcove fixture consists of a fixed wall and a folding door. The product is well-suited for a shower enclosure outside of which on one side is fixtures and on the other side the space is cramped so that the door may not have enough space to properly open outwards. The folding door does not require space for opening outside the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. Fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

The door rotates 90 degrees in both directionsand is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel turns 180 degrees in relation to the inner panel so that the panels fold against each other into the inside portion of the shower area. A magnet seal keeps the door tightly closed during showering.

Shower wall and door are attached to the walls of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

5 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 35mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Alcove fixed screen (A)

X

Alcove folding door (B)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1174mm
- At its widest: 1209mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Express 842 (811+813)

Product code

842-81-72

Price

0.00 €

2

Express 811 Alcove fixed screen
Grey anodized/Transparent/A=491 x 1900

Product code

811 81 0048

Price

210.00 €

3

Express 813 Alcove folding door
Grey anodized/Transparent/B=683 x 1900

Product code

813 81 0067

Price

335.00 €

4

Magnet seal pair

Product code

900 RL 0002

Price

20.00 €

5

TOTAL

Product code

Price

565.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1174mm
- At its widest: 1209mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379424114
