Fenic 345 (312+314)

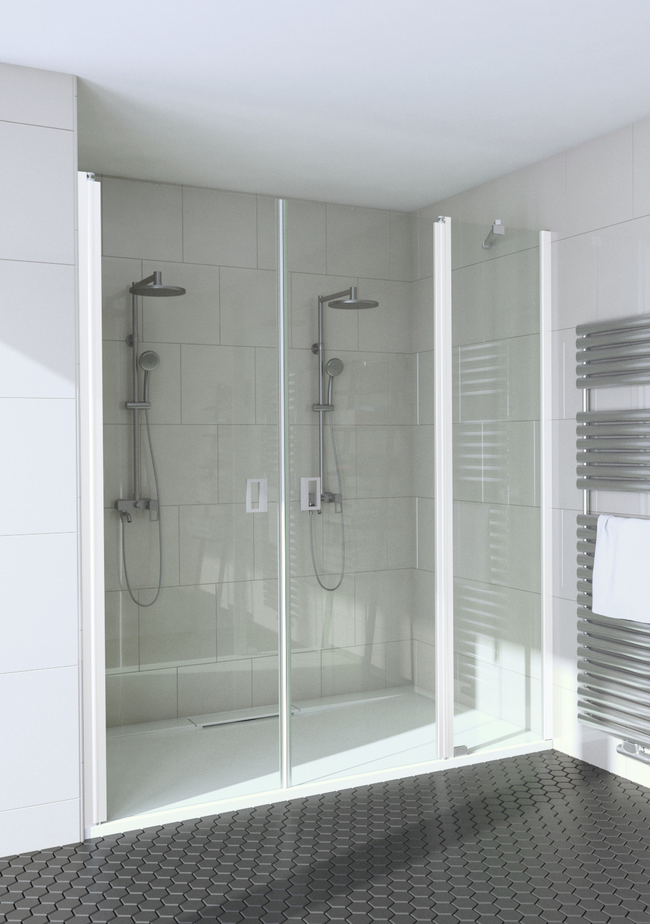

Alcove fitting with a hinged double door, one of which has a fixed part

The alcove fixture consists of a hinged door and a fixed wall into which another hinged door has been attached. The product is well-suited for a shower enclosure with fixtures located next to it. The fixed wall and the doorway can be dimensioned so that the fixed wall protects the fixtures and the doorway occupies the width of the available space space. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

Shower wall and door are attached to the walls of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 35mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

Product size

Alcove hinged door (A)

X

Alcove hinged door (B)

X

Alcove fixed screen (C)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1131mm
- At its widest: 1166mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Fenic 345 (312+314)

Product code

345-61-445

Price

0.00 €

2

Fenic 312 Alcove hinged door
White painted/Transparent/A=387 x 2000

Product code

312 61 0038

Price

360.00 €

3

Fenic 314 Alcove hinged door
White painted/Transparent/B=327 x 2000

Product code

314 61 1031

Price

257.50 €

4

Fenic 314/315 Alcove fixed screen
White painted/Transparent/C=417 x 2000

Product code

314 61 0042

Price

257.50 €

5

Magnet seal pair

Product code

929 6L 0004

Price

40.00 €

6

TOTAL

Product code

Price

915.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1131mm
- At its widest: 1166mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379422554
