Fenic 342 (311+315)

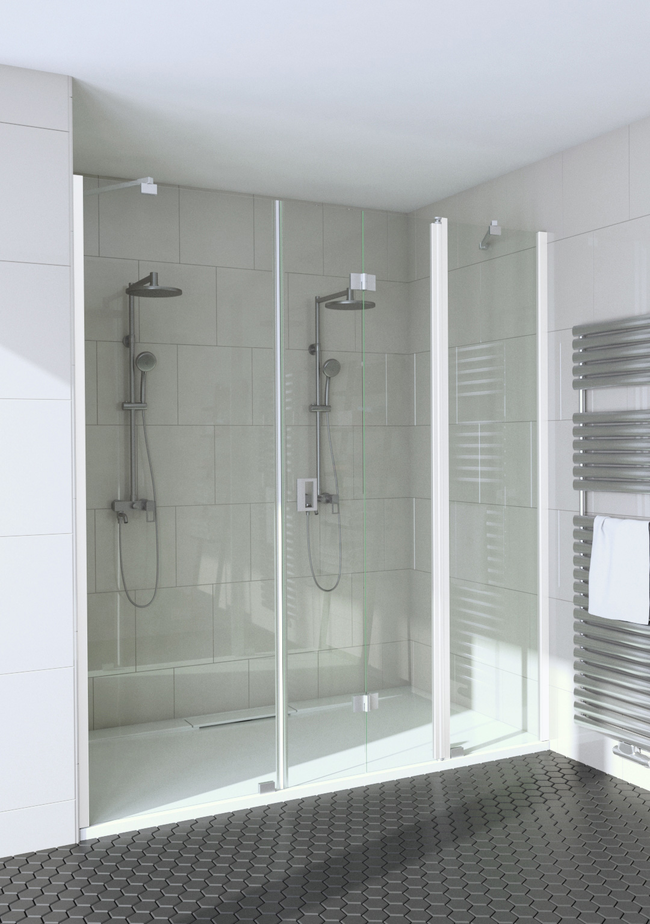

The alcove fitting on the fixed wall and on the folding door with a fixed part

The alcove fixture consists of two fixed walls, to one of which a hinged folding door is attached. The product is well-suited for a shower enclosure is well-suited for a shower enclosure outside of which on one side there are fixtures and on the other side the space is also cramped both inside and outside of the shower area. The folding door does not require space for opening from outside of the shower area; instead, it folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the door has been hinged can be dimensioned according to the fixtures (e.g. the mixer) in the shower area so that the door does not hit the fixtures when being folded. The other fixed wall can be dimensioned so that the fixed wall protects the fixtures outside of the shower area.

The door rotates 90 degrees in both directionsand is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel turns 180 degrees in relation to the inner panel so that the panels fold against each other into the inside portion of the shower area. A magnet seal keeps the door tightly closed during showering.

Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the brace bars installed in the corners as well as from the bottom edge by the fitting glued to the floor. There is a gap of 25 mm between the panel of the fixed walls and the floor. seal (standard part)s may be installed between the panel and the Floor, in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 40mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

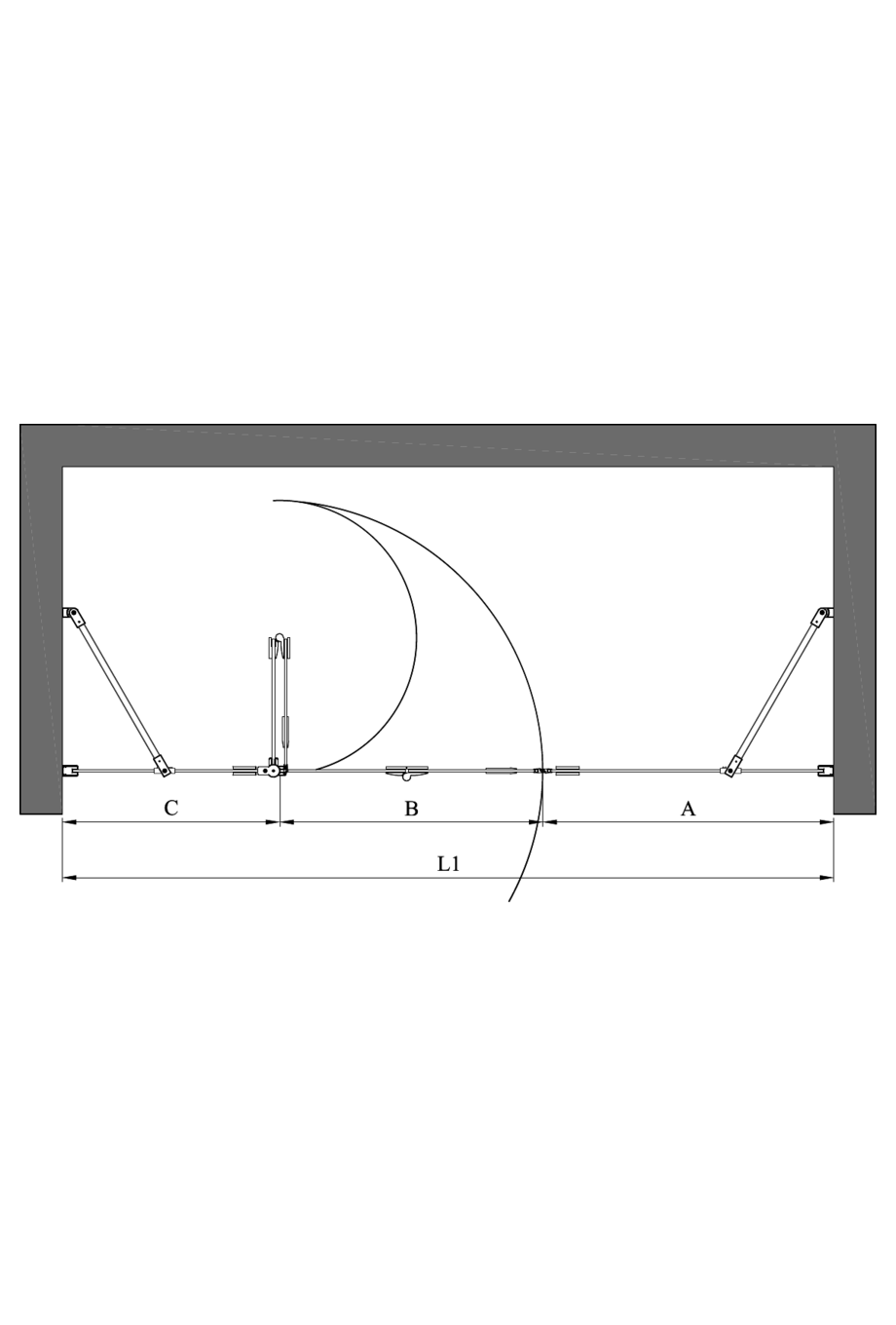

Product size

Alcove fixed screen (A)

X

Alcove folding door (B)

X

Alcove fixed screen (C)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1332mm
- At its widest: 1372mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Product

Product code

Price

1

Fenic 342 (311+315)

Product code

342-61-515

Price

0.00 €

2

Fenic 311 Alcove fixed screen
White painted/Transparent/A=392 x 2000

Product code

311 61 0038

Price

290.00 €

3

Fenic 315 Alcove folding door
White painted/Transparent/B=523 x 2000

Product code

315 61 1051

Price

367.50 €

4

Fenic 314/315 Alcove fixed screen
White painted/Transparent/C=417 x 2000

Product code

314 61 0042

Price

257.50 €

5

Magnet seal pair

Product code

929 6L 0001

Price

40.00 €

6

TOTAL

Product code

Price

955.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1332mm
- At its widest: 1372mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379422431
